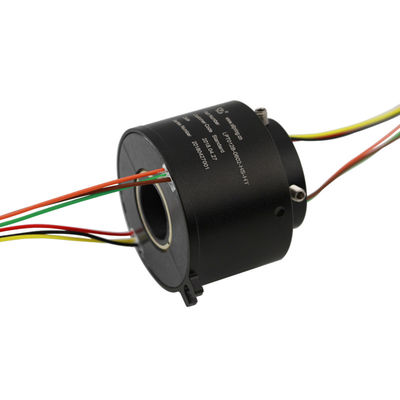

12.7mm Through Bore Slip Ring 6 Circuits 2A IP50

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT012B-0602
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Through Bore Slip Ring ID 12mm
Contact Material Precious Metal Protection Grade IP54 Or Higher
Wire Size Or Other Wire Working Speed 0~300rpm
Contact Material Gold To Gold Rating Voltage 48V AC/DC
High Light

6 Circuits rotating slip ring


hollow shaft slip ring


12.7mm Through Bore Slip Ring

Product Description

 12.7mm Through Bore Slip Ring 6 Circuits 2A IP50



For a power-driven vehicle, the slip ring is required to support and sustain its operation. The slip ring developed by JINPAT for high speed trains is mainly characteristic of high rotating speed and long service life. With such a performance, its reliable power & signal transmission helps the train to obtain enough accelerating force during a high-speed driving. Even though it is in summer, the high speed train slip ring with 80°C can also retain a normal operation regardless of high temperature resulting from outdoor environment or heat from friction from high-speed operation. As a high-speed slip ring, it can be also used for speed checking equipment.



  • Long service life: In actual tests, its life reaches 230 million revolutions in a speed of 2000 rpm;
  • High working speed: In a speed of 10000rpm, it can still operate with 50 million revolutions;
  • High Temperature Resistance: It can keep a long-time operation in a temperature up to 80°C after an actual test.

Product parameter table


Electronic & Electruc Mechanical
Circuits Total 10 CKT Working Speed 0~300rpm
Detail 10X1A Contact Material Gold to Gold
Rating Voltage 48V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥100VAC@50Hz Lead Wire Length Stator: 250士5mm
Rotor: 250士5mm
Insulation Resistance ≥50MΩ@100VDC Dynamic Resistance
Fluctuation Balue
35mEnvironment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity ≤60%RH Other /
IP IP40 Note:"P" stands dor power, "S" stands for signal


slip ring outline drawing


12.7mm Through Bore Slip Ring 6 Circuits 2A IP50 0

Product Display



12.7mm Through Bore Slip Ring 6 Circuits 2A IP50 1

Main Application


  • Vehicle Turrets
  • Medical Systems
  • Radar Antennas
  • Robotics Vehicles
  • Security Systems
  • Material Handling Systems
  • Sensor Platforms
  • Remotely Operated Vehicles
  • Video Surveillance Systems
  • Fiber Optic Cable reels'
  • Marine Population Systems
  • Wind Energy Turbines

Application Picture


12.7mm Through Bore Slip Ring 6 Circuits 2A IP50 2



Company Introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.


12.7mm Through Bore Slip Ring 6 Circuits 2A IP50 3


PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.


12.7mm Through Bore Slip Ring 6 Circuits 2A IP50 4


Frequently Asked Questions


1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.


3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
