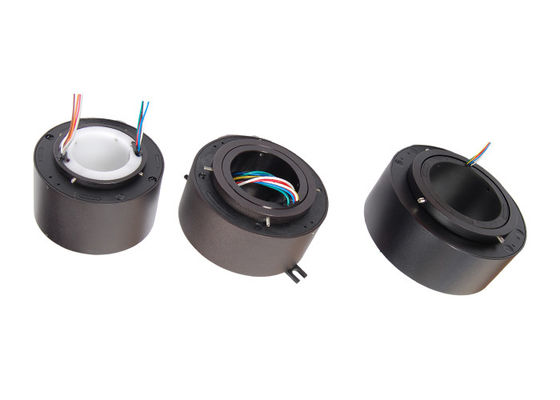

60mm ID Through Hole Slip Ring of 6 Circuits Transmitting 15A Per Wire for Rotary Sensor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Through Bore Slip Ring | Bore Size | 60mm, 80mm, 96mm |
|---|---|---|---|
| Number Of Circuits | 6 Circuits | Current Rating | 5A/10A/15A Each Circuit |
| Through Bore Material | Engineering Plastic | Working Voltage | 220V/AC |
| High Light | rotating slip ring,hollow shaft slip ring |
||
Product Description
LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.
Description
The LPT060-0615 through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It adopts advanced fiber brush technology, which brings no wear deberis. No maintenance is required, along with a long service life.
Features
- 6 circuits models
- Precious metal contacts
- 15 amps per wire
- Precision ball bearings for long life
- Speed up to 300 rpm continuous
- Compact size
- Sealed units available
- Low torque minimizes system torque budget
- Rapid delivery
Specification
| Circuits | 6 |
| Current Rating | 15A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Hole Diameter | 60 mm |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Outline Dimension
Application
- Radar antenna
- Rotary Platform
- Engineering machine
- Packaging Machine
- Test Equipment
Product Display
PS:
Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.
Our Services
Company Information
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
