100rpm 2 Circuits Pancake Rotary Slip Ring With Separate Stator And Rotor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 2 | Operating Speed | 100rpm |
|---|---|---|---|
| Voltage Rating | 380VAC/DC Or Higher | Current Rating | 5A Per Circuit |
| Contact Material | Precious Metal | Electrical Noise | 1mΩ Min |
| Lead Wire Length | Standard 300mm (11.811inch) | Working Temperature | -20℃~ +60℃ |
| Shaft Material | PCB | ||
| Highlight | Pancake Rotary Slip Ring,100rpm pancake slip ring assemblies,100rpm Pancake Rotary Slip Ring |
||
Product Description
2 Circuits Pancake Slip Ring with Separate Stator and Rotor
Description
In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. LPKS025 Slip Ring with Through Bore 46.0mm uses Jinpat's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
The 46.0mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPKS-0205 Pan Cake Slip Ring uses advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.
Outline drawing
Features
- 6mm THK
- Pancake separate PCB design
- Compact 82mm outside diameter
- Steel bearings and machined shaft and housing for harsh environments
- Collar mounting is standard; flange mounting is optional
- Various lead exits are available
- Silver plated rings are standard. Gold plated optionally.
- Continuous 360° rotation of power or data signals
Advantages
- Transfers control and data signals
- Fiber brush technology provides maintenance-free operation (no lubrication required)
- Modular design meets special requirements through off-the-shelf manufacturing techniques
- Customized configurations for your application
Main Applications
- Semiconductor handling systems
- Industrial machinery
- Medical equipment
- Rotary index tables
- Process control equipment
- Emergency lighting, robotics Palletizing machines,
- Heavy equipment turrets or cable reels
Option
- Placement of custom circuitry directly onto the unit
- Custom mechanical integration features
- Addition of specialist components
- The inclusion of coax and miniature data bus cables
| Specification | |
| Circuits | 2 circuits |
| Operating Speed | 100rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical: | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 5A per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@ 500VDC |
| Electrical Noise | 1mΩ Min |
| Mechanical: | |
| Contact Material | Precious metal |
| Shaft Material | PCB |
| Shaft Diameter | Φ46mm |
| Lead Wire Size | Tinning AWG22 |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Torque | ≤0.12 g·m (for reference ) |

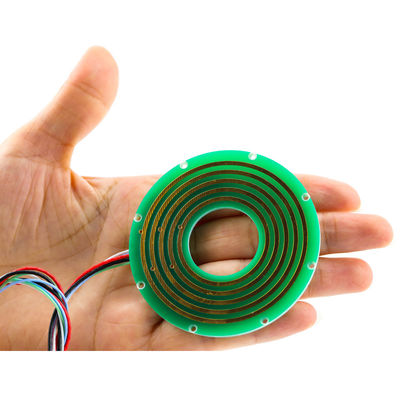

Product Display
