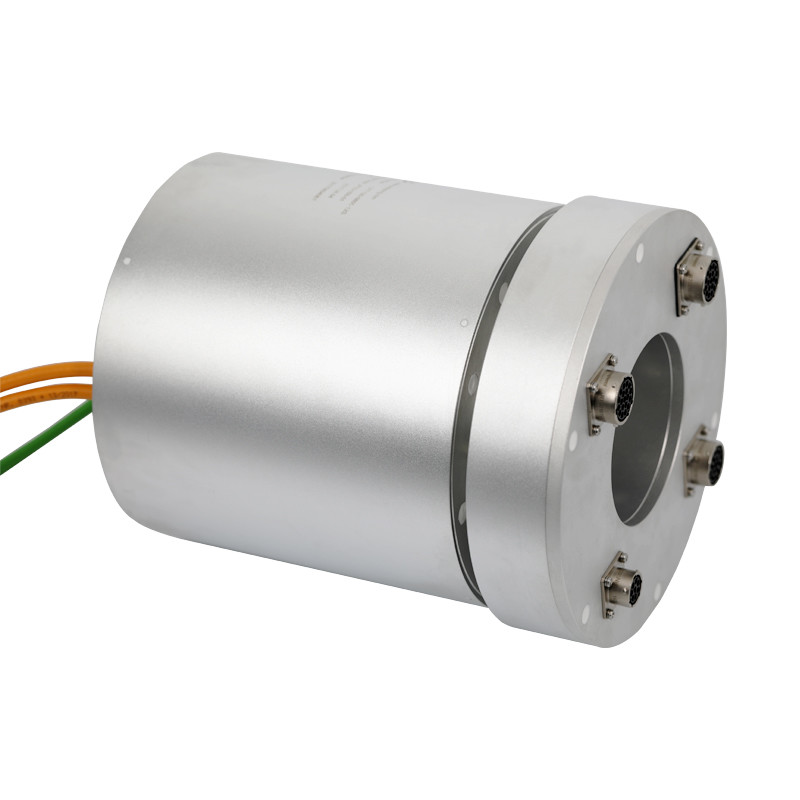

20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise

  • 20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise
  • 20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPT100-0805-12S
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pcs /week
Product Details
Contact Material Precious Metal Contact Revolving Speed 0~20rpm
IP Grade IP54 Current 8circuits*5A，12circuits*Signal
Application Thermal Power Station
Highlight

hollow shaft slip ring

,

rotating slip ring
Product Description

20 Circuits 100mm ID Through Bore Slip Ring with Low Electrical Noise for Thermal Power Station



Description



The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints of 16 channels at most. Also, it can integrate high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges. Moreover, these slip rings are able to stand the EMC and Wet Calorific Tests.



Specification
Circuits 20 circuits
Operating Speed 0-20rpm
Working Temperature -20℃~ +60℃
Working Humidity ≤60%RH
Electrical:
Current Range 8circuits@5A, 12circuits@signal
Voltage Rating  240 /400V
Dielectric Strength ≥1000V@50Hz, ≥300V@50Hz(signal)
Insulation Resistance 500MΩ@ 500VDC,100MΩ@ 500VDC(signal)
Electrical Noise ≤10mΩ
Mechanical:
Contact Material Precious metal
Housing Material Aluminum alloy
bore size 100mm
Protection IP54



Product display

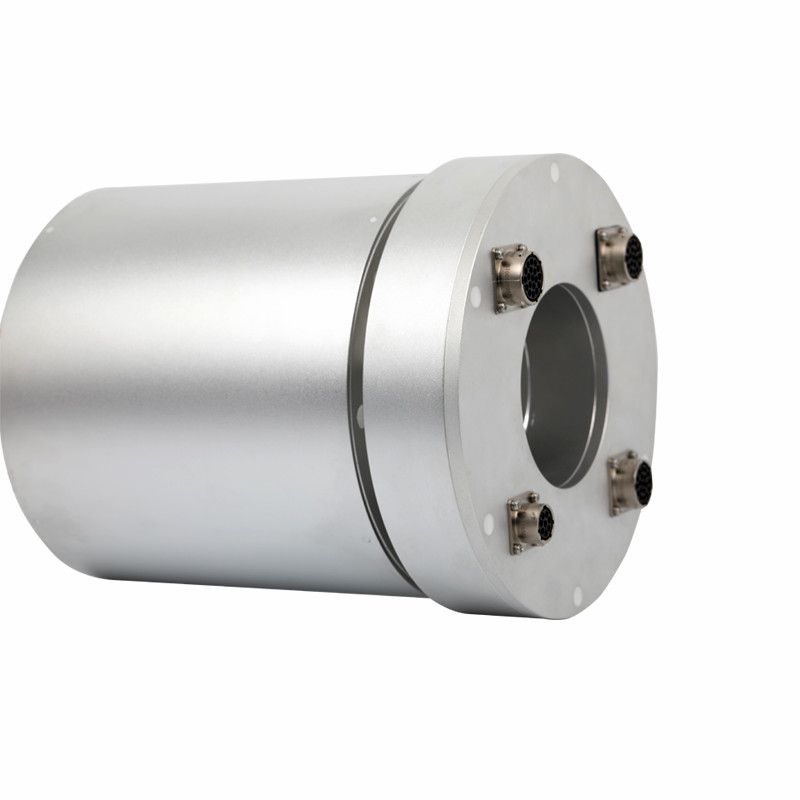

20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise 0
