300 Rpm Capsule Slip Ring Transferring Gigabit Ethernet With 10 Million Revolutions
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Capsule Slip Ring | Type | 1000M Ethernet |
|---|---|---|---|
| Configuration | Capsule | Number Of Circuits | 1 |
| Contact | Gold To Gold | Working Temperature | -20~+60℃ |
| Wire Length | Rotor:200±5mm Stator:200±5mm | Wire Size | CAT5E+RJ45 |
| Highlight | 300 rpm signal slip ring,300 rpm electrical slip ring,300 rpm Capsule Slip Ring |
||
Product Description

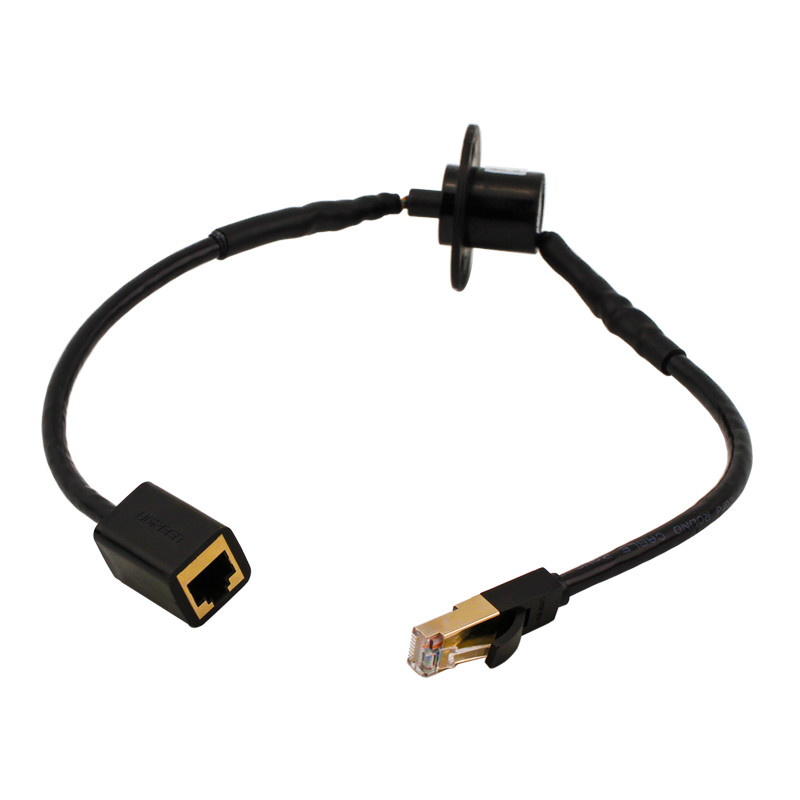

300 Rpm Capsule Slip Ring Transferring Gigabit Ethernet With 10 Million Revolutions
Description
The Capsule Slip Ring is a part that transmits 1000M Ethernet with one circuit. It is especially designed for Ethernet signal transmission. Working in a voltage of 56 VAC/DC, the slip ring has a low electrical noise of ≤20mΩ (50rpm). Moreover, it can operate in a wide working temperature of -20~+60℃. Strictly speaking, it is a custom slip ring that has been applied in the equipment.
Specification
| Circuits | 1circuit *1000M Ethernet |
| Working Voltage | 56 VAC/DC (600ma) |
| Dielectric Strength | Between circuits≥300VAC@50Hz (signal) |
| Insulation | ≥100MΩ@100VDC (signal) |
| Electrical Noise | ≤20mΩ |
| Working Speed | 0~300 rpm |
| Contact | Gold to Gold |
| Housing | Engineering Plastic |
| Wire Size | CAT5E+RJ45 |
| Wire Length |
Rotor:200±5mm Stator:200±5mm |
| Temperature | -20°C~+60°C |
| Humidity | ≤60%RH |
| IP | IP54 |
| Life | ≥10 million revolutions |
