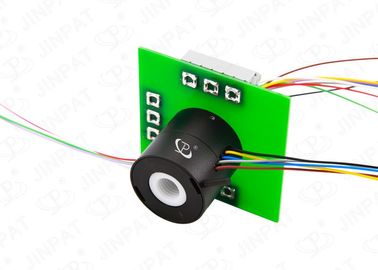

9 Circuits Through Hole Slip Ring 240V Voltage and 2A

  • 9 Circuits Through Hole Slip Ring 240V Voltage and 2A
  • 9 Circuits Through Hole Slip Ring 240V Voltage and 2A
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPT012A-0902
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 9 Circuits Operating Speed 0-300rpm
Working Temperature 60%RH Voltage Rating 220VAC
Current Rating 2A Per Circuit Dielectric Strength ≥500V@50Hz Between Each Circuit
Electric Noise 70mΩ Min
Highlight

hollow shaft slip ring

,

through bore electrical slip ring
Product Description

9 Circuits Through Hole Slip Ring Transmitting Power with 240V Voltage and 2A per Circuit



LPT012A-0902 slip ring​ can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.

It provides an economical, readily available solution when a compact through-bore configuration is required.



Specifications



Circuits 9 circuits * 2A
Working Voltage 220VAC(Power)
Dielectric Strength Between circuits ≥500V@50Hz
Insulation 300MΩ@500VDC
Electrical Noise ≤70mΩ (50rpm)
Working Speed 0~300 rpm
Contact Precious metal
Housing Aluminum Alloy
Wire Size AWG24# Tin Plated UL
Wire Length Rotor:80mm Stator:250mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54



Product Image

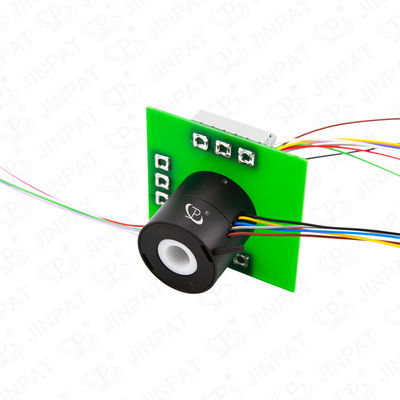

9 Circuits Through Hole Slip Ring 240V Voltage and 2A 0
