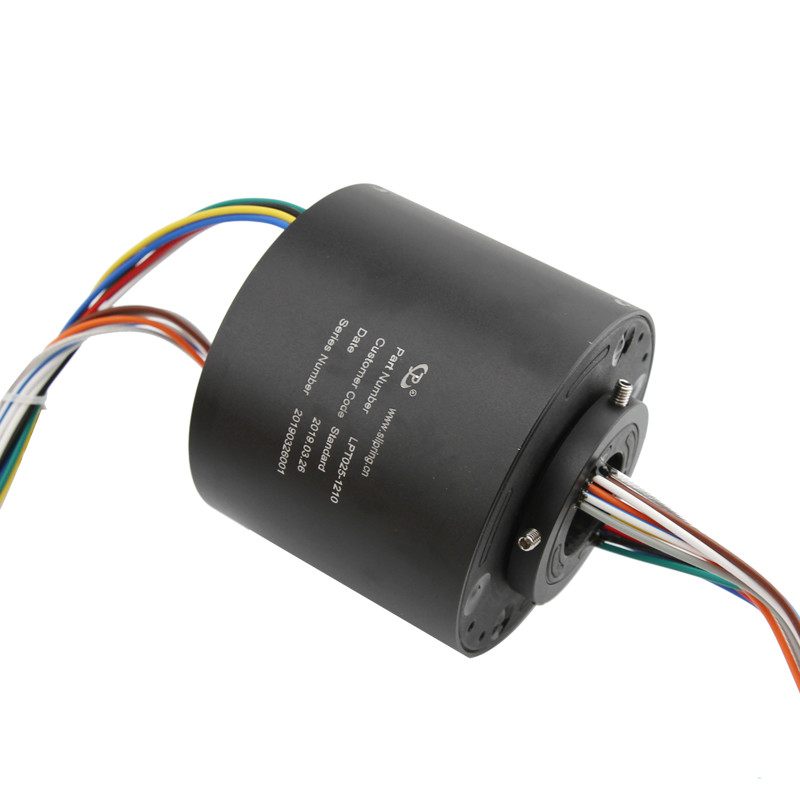

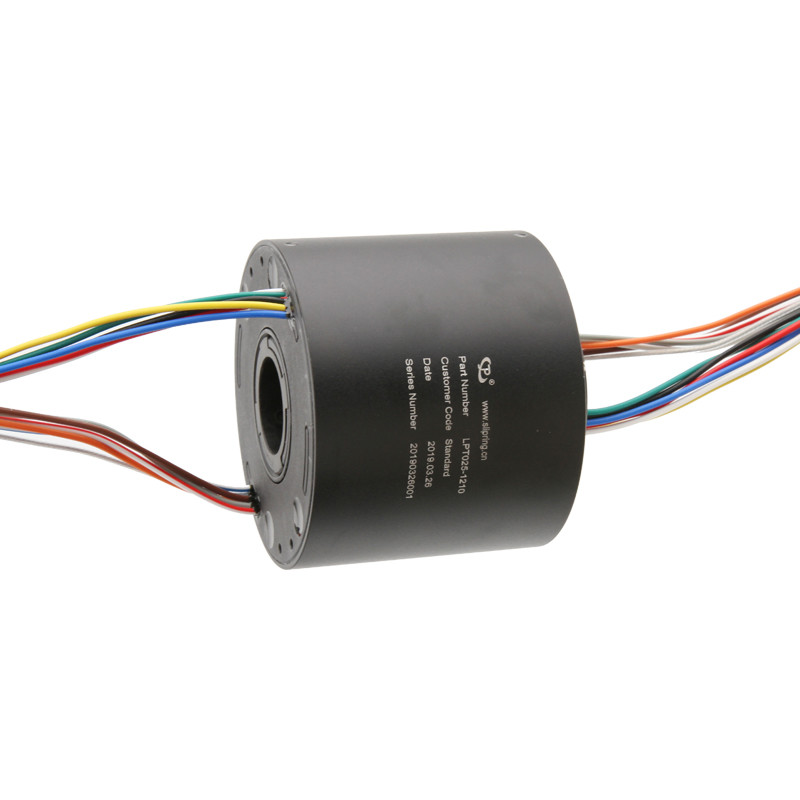

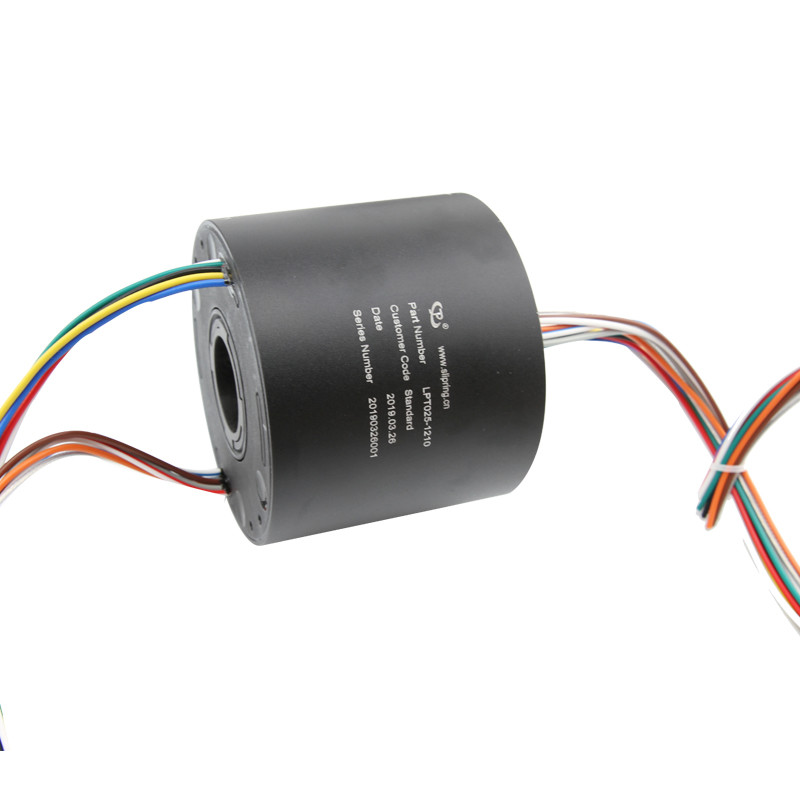

Through Hole Slip Ring Precious Metal Contact 12 Circuits 10A 240 VAC/DC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Rating | 10A | Voltage | 240 VAC/DC |
|---|---|---|---|
| Circuit Number | 12 | ||
| Highlight | rotating slip ring,hollow shaft slip ring |
||
Product Description
Description
The LPT025-1210 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.
Outline Drawing
Specification
| Circuits | 12 |
| Current Rating | 10A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | 1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Hole Diameter | 25.4 mm |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Wire Length | 300mm (rotor), 300mm (stator) |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
