Precious Metal Contacts Rotary Joint Slip Ring 18 Circuit 10A

  • Precious Metal Contacts Rotary Joint Slip Ring 18 Circuit 10A
  • Precious Metal Contacts Rotary Joint Slip Ring 18 Circuit 10A
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPT038-1810
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 18 Hole Diameter 38.1mm
Current Rating 10
Highlight

through bore electrical slip ring

,

rotating slip ring
Product Description

The LPT series hollow shaft slip ring is specially designed with a central hole for convenient hydraulic passage, pneumatic passage or drive shaft installation. It adopts advanced tuft brush type multi-point contact to ensure reliable contact under extremely low friction. The through hole is from 3mm to 500mm. Optional, currents from 2 amps to 1000 amps are available to meet your different drive options.



The part is LPT038 series slip ring that has a hole of φ38.1mm. It cn transmit 10A current in 18 circuits. Adopting advanced fiber brush technology, the part has a reliable performance with stable conatct and good conductivity.



Specification



Circuits 18
Current Rating 10A
Voltage 240 VAC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation 500MΩ@500VDC
Hole Diameter 38.1 mm
Working Speed 0~300 RPM
Contact Precious metal
Working Temperature -20~+60℃
Humidity ≤60%RH





Product outline drawing



Precious Metal Contacts Rotary Joint Slip Ring 18 Circuit 10A 0

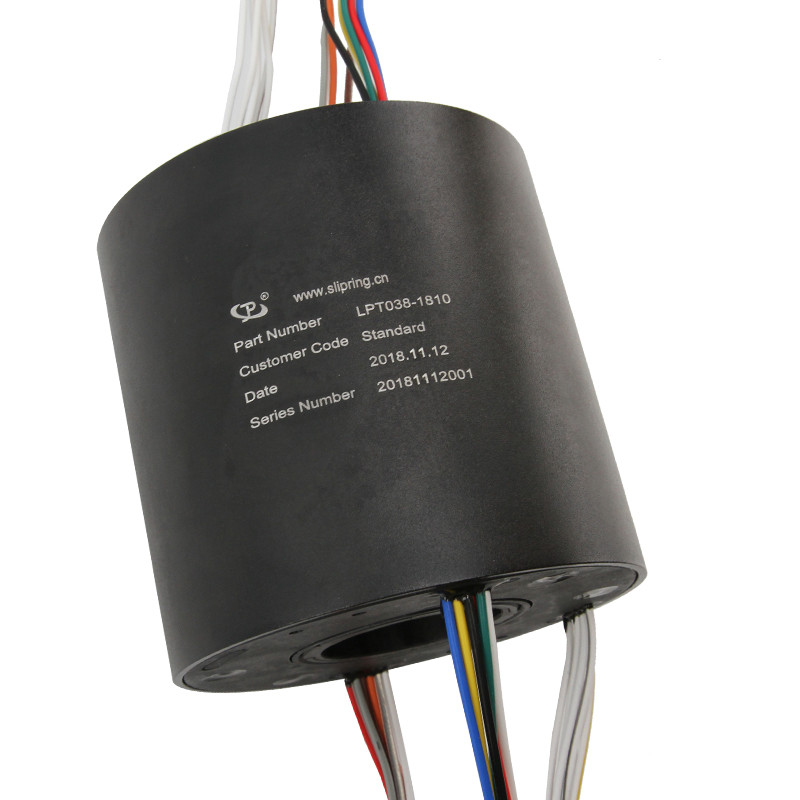

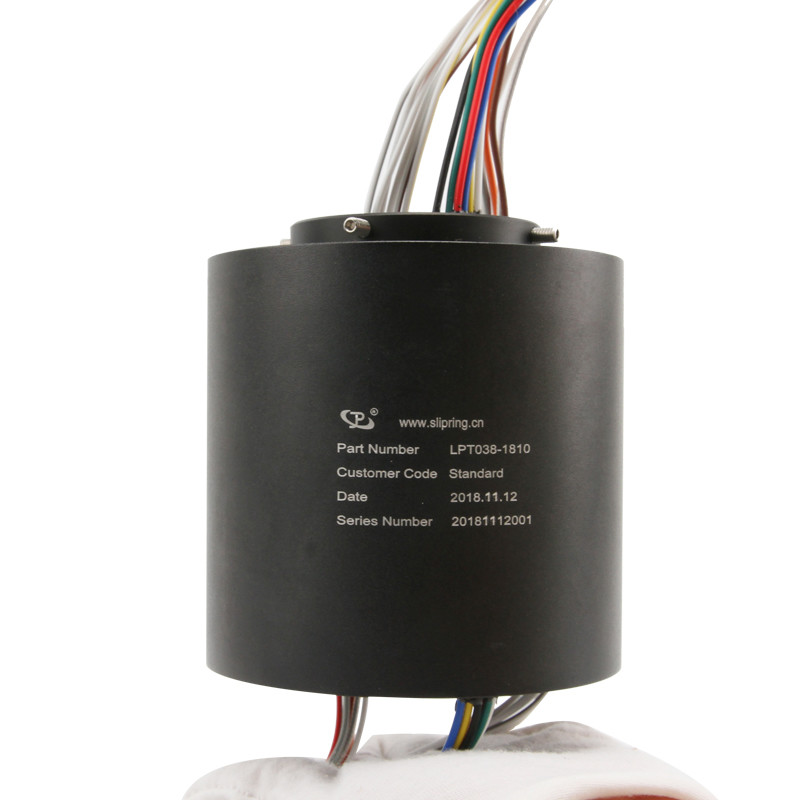

Product Image

Precious Metal Contacts Rotary Joint Slip Ring 18 Circuit 10A 1

Precious Metal Contacts Rotary Joint Slip Ring 18 Circuit 10A 2
