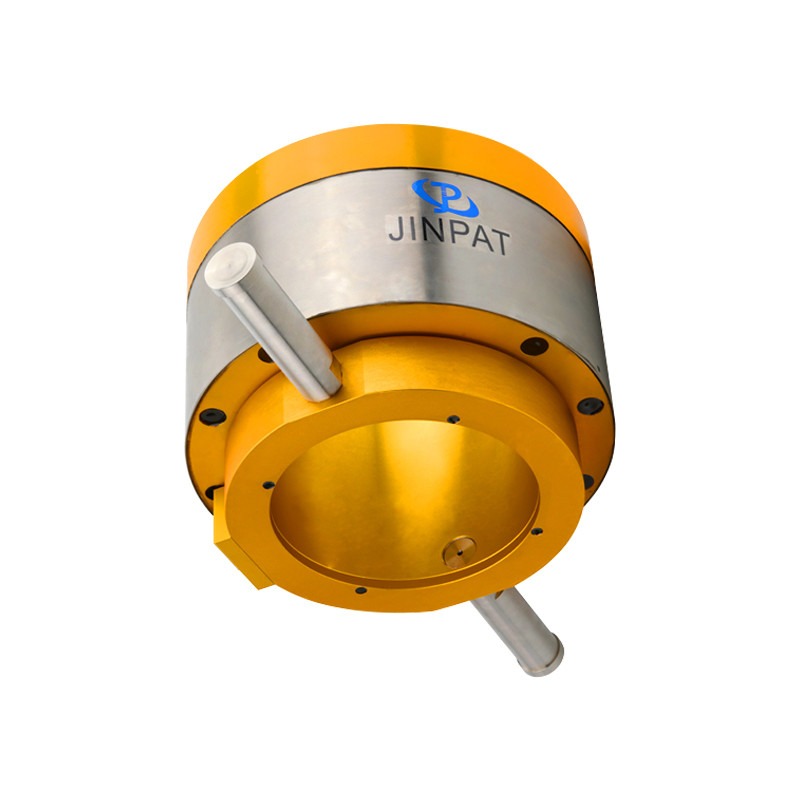

100T Rotary Slip Ring Through Hole Construction Machinery Waterproof IP68

  • 100T Rotary Slip Ring Through Hole Construction Machinery Waterproof IP68
  • 100T Rotary Slip Ring Through Hole Construction Machinery Waterproof IP68
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT200-0430-0210-06S
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dielectric Strength ≥500VAC@50Hz Rotating Speed 0~100rpm
Humidity ≤95%RH Voltage 36VDC
Housing Material Aluminum Alloy Type Electric Swivel Slip Ring
Protection Grade 67
High Light

IP68 hollow shaft slip ring

,

through bore electrical slip ring

,

100T Rotary Slip Ring
Product Description

100T Rotary Slip Ring Through Hole Construction Machinery Waterproof IP68



Product Description



Construction Machinery
Model Application area
LPTS000-0330-1105 100100T All terrain crane

Advantages
  • Excellent water-proof performance, protection grade up to IP67, fits to work in outdoor environment
  • Multiple channels for power, general signals, throttle signal and CANBUS signal, etc.
  • Meet the requirements of crane models with 12T~350T lifting capacity
  • Large through-bore series, bore diameter 200mm
Features
  • Simultaneous transmission of power and signal
  • Large through-bore design
  • Standard installation, protection grade IP67
  • Maintenance-free



Electrical & Electroni Mechanical Enviromental
Number of
circuits
 12CKT Rotating speed 0~100rpm Temperature -30°C~+80°C
Current
4×30A+2×10A+3×5A+
4×CANBUS+1×Throttle signal
Contact
material
 Precious metal Humidity ≤95%RH
Voltage 36VDC
Housing
material
 Aluminum alloy
Protection
Grade
 67
Dielectric
strength
 ≥500VAC@50Hz Wire type 4.0/2.0/0.75mm2FLRY-B/CANBUS
Others
Insulation
resistance
 ≥500MΩ@500VDC Wire length
Stator side:3500mm
Rotor side:1500mm
 Life span Can be customized


Product outline drawing
100T Rotary Slip Ring Through Hole Construction Machinery Waterproof IP68 0
