Long Life Slip Ring Solutions Low Signal Transmission Loss High Vibration Resistance

  • Long Life Slip Ring Solutions Low Signal Transmission Loss High Vibration Resistance
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPC-10S
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO5
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Life Span 270 Million Rpm Protection Grade IP54
Temperature -10℃~+80℃ Type USB Slip Ring,Slip Ring Assembly
Standard Or Nonstandard Standard Name Capsule Slip Ring
Highlight

hollow shaft slip ring

,

rotating slip ring
Product Description
Long Life Slip Ring
Model Application area
LPC-10S
Military equipment;
Laboratories and other special equipment.



Advantages
  • High and low temperature resistance
  • High vibration resistance, high impact
  • Isolation is greater than 60db, signal transmission loss is extremely low
  • Contact surface mirror running-in technology reaches the world’s leading level

Electrical & Electroni Mechanical Enviromental
Number of
circuits
 1CKT Rotating speed 0~1200 rpm Temperature -10℃~+80℃
Current 1A
Contact
material
 Gold-to-gold Humidity ≤60%RH
Voltage 0-20VAC
Housing
material
 Aluminum alloy
Protection
Grade
 IP54
Dielectric
strength
 ≥500VAC@50Hz Torque /
Others
Insulation
resistance
 ≥100MΩ@500VDC Wire Type AWG28#
Life Span
270 million rpm
Dynamic Contact
Resistance
 ≤30mΩ
Wire Length
Rotor: 250±5mm
Stator: 250±5mm

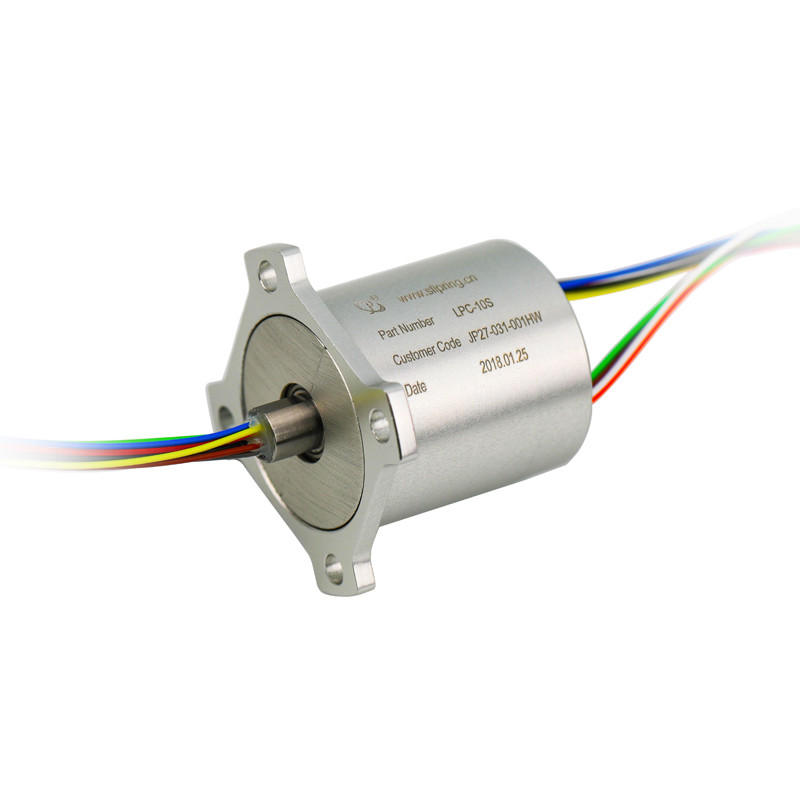

 Product Image
Long Life Slip Ring Solutions Low Signal Transmission Loss High Vibration Resistance 0

Outline drawings
Long Life Slip Ring Solutions Low Signal Transmission Loss High Vibration Resistance 1
