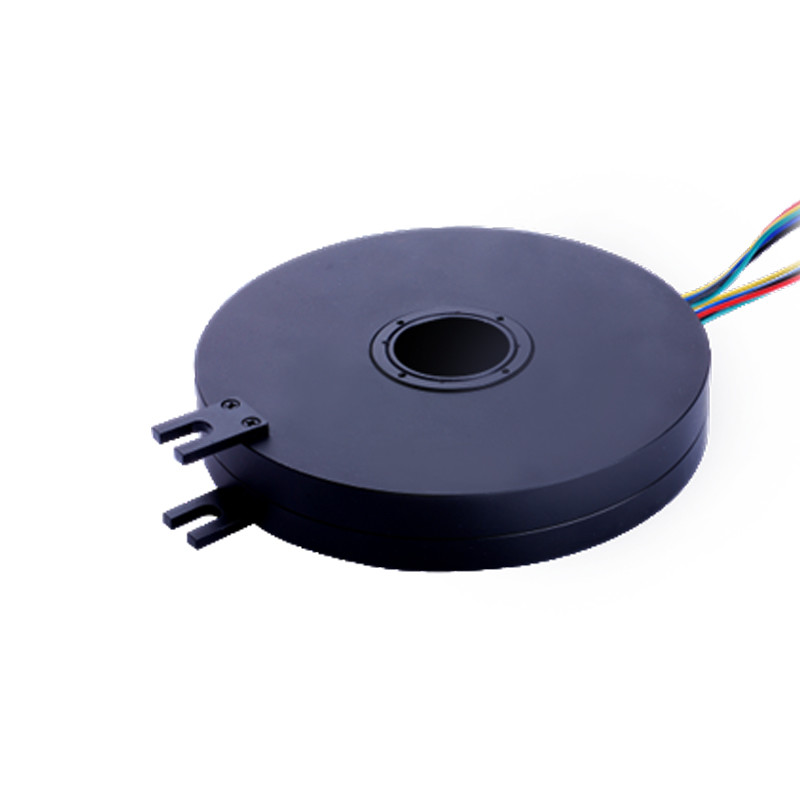

Integral Pancake Capsule Slip Ring Maintenance Free Low Torque Smooth Reliable Operation

  • Integral Pancake Capsule Slip Ring Maintenance Free Low Torque Smooth Reliable Operation
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPK025-0204
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO5
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week
Product Details
Product Name Capsule Slip Ring Number Of Circuits 2CKT
Current 4A/signal(optional) Voltage 240VAC/24VDC
Contact Material Gold-to-gold Protection Grade IP54
Insulation Resistance ≥500MΩ@500VDC Torque 0.5N.m(for Reference)
Highlight

hollow shaft slip ring

,

rotating slip ring

,

240VAC Capsule Slip Ring
Product Description

Bargain Price Only in Alibaba



Integral Pancake Slip Rings
Model Application area
LPK025-0204 Military airborne



Advantages
  • Super thin, only 22mm, especially designed for applications with limited axial installation space,maintenance-free

  • High protection grade up to IP54, especially designed for humid,dusty and heavily polluted environments.

  • Gold-to-gold contact guarantees low friction and long service life

  • For the excellent performances, the slip rings are applied in vehicle onboard equipment system,and win favorable reputation in the market
Features
  • Sing-row rolling bearing, high protection grade

  • Simultaneous transmission of power and signal

  • Compact structure to fit in small application with limited installation space

  • Maintenance-free, low torque

  • Demonstrates high precision, excellent transmit performance, smooth and reliable operation



Electrical & Electroni Mechanical Enviromental
Number of
circuits
 2CKT Rotating speed 0~100rpm or higher Temperature -55°C~+80°C
Current 4A/signal(optional)
Contact
material
 Gold-to-gold Humidity ≤60%RH
Voltage 240VAC/24VDC
Housing
material
 Aluminum alloy
Protection
Grade
 IP54
Dielectric
strength
 ≥500VAC@50Hz Torque 0.5N.m(for reference)
Others
Insulation
resistance
 ≥500MΩ@500VDC Wire Type
AWG20#
Tin plated
Life Span
Can be customized
Dynamic Contact
Resistance
 ≤30mΩ(at 50rpm)
Wire Length
Stator:300mm
Rotor:300mm



Outline drawings

Integral Pancake Capsule Slip Ring Maintenance Free Low Torque Smooth Reliable Operation 0
