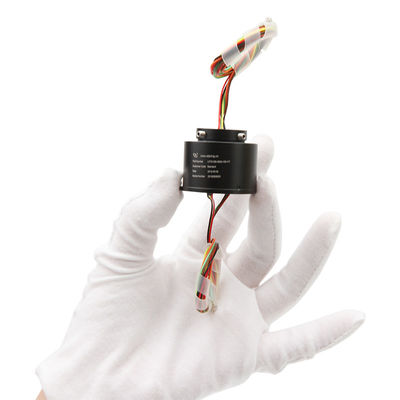

240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6*2A

  • 240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6*2A
  • 240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6*2A
  • 240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6*2A
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT012B-0602-HS-HT
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total 6CKT Detail 6X2A
Dielectric Strength 500VAC@50Hz Contact Material Gold To Gold
Working Speed 0rpm~2000rpm Rating Voltage 240VAC
Highlight

IP50 Electrical Rotary Joint

,

240VAC Electrical Rotary Joint

,

IP50 Through Bore Slip Rings
Product Description

240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6X2A

Through Hole Slip Ring,can integrate high frequency,fiber other signal,0~2000rpm

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.



Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~2000rpm
Detail 6X2A Inner Diameter Φ12.7mm
Rating Voltage 240VAC Contact Material Gold-Gold
Dielectric Strength 500VAC@50Hz Housing Material Engineering plastic
Insulation Resistance ≥300MΩ@300VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+125°C Application /
Working Humidity ≤60%RH Other /
IP IP50 Note:"P" stands dor power, "S" stands for signal



Through bore electrical slip ring Outline Drawing






240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6*2A 1

240VAC IP50 Electrical Rotary Joint Through Bore Slip Rings 6*2A 2

Features:

  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories are as follows:
  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
  • HD video: SDI, LVDS, etc.
  • Serial communication: RS232, RS485, RS422, etc.
  • Universal Serial Bus: USB2.0
  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
  • Long service life, maintenance-free
  • Easy to install

Main Applications:
Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition /
display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging
machinery/Ship offshore equipment/Construction machinery
