Precious Metal 380VAC IP54 Radar Electrical Slip Ring Aluminum Alloy
Product Details
| Working Speed | 0~30rpm | Isolation,min | 50 DB |
|---|---|---|---|
| Rotating Speed,max. | 30RPM | Specifications | 3 Chanel |
| Connector Material | Copper Alloy | Rating Voltage | 380VAC |
| Dielectric Strength | 1000VAC@50Hz | ||
| High Light | IP54 Radar Electrical Slip Ring,380VAC Radar Electrical Slip Ring,Precious Metal antenna slip ring |
||
Product Description
Precious Metal 380VAC IP54 Radar Electrical Slip Ring Aluminum Alloy
JINPAT radar moving mid-pass antenna slip ring supports mixed transmission of multiple signal currents, and supports multi-channel high-frequency rotary joint integration. The outlet end can be welded with aviation plug.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 6CKT | Working Speed | 0~30rpm |
| Detail | 6X5A | Inner Diameter | / | |
| Rating Voltage | 380VAC | Contact Material | Precious Metal | |
| Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy | |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length |
Stator:300mm Rotor:300mm |
|
| Environment | Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP54 | Note:"P" stands dor power, "S" stands for signal | ||
| RJ153166.3 Channel Rotary Joint | |||
| Specifications | Chanel 1 | Chanel 2 | Chanel 3 |
| Connector | UBR140 Flange | SMA Female | SMA Female |
| Frequency Range | 13.7 GHz~14.6 GHz | DC~1.65 GHz | DC~1.65 GHz |
| Peak Power,max. | 20 kw | 1KW @1.0GHz | 1KW@1.0GHz |
| Acerage Power,max | 500 W | 10W | 10W |
| VSWR,max. | 1.15 | 1.3 | 1.3 |
| VSWR WOW,max. | 0.15 | 0.2 | 0.2 |
| Insertion Loss,max. | 0.2 dB | 0.5 dB | 0.5 dB |
| Insertion Loss,WOW,max | 0.1 dB | 0.15 dB | 0.15 dB |
| Isolation,min | 50 dB | ||
| Rotating Speed,max. | 30RPM | ||
| Starting Torque,max. | 30Ncm | ||
| Case Material | Aluminum alloy | ||
| Connector Material | Copper alloy | ||
| Case Surface Finish | Chromate conversion coat per MIL-C-5541 | ||
| Connector Surface Finish | Gold plated | ||
| Marking | Adhesive label | ||
Radar electrical slip ring outline drawing

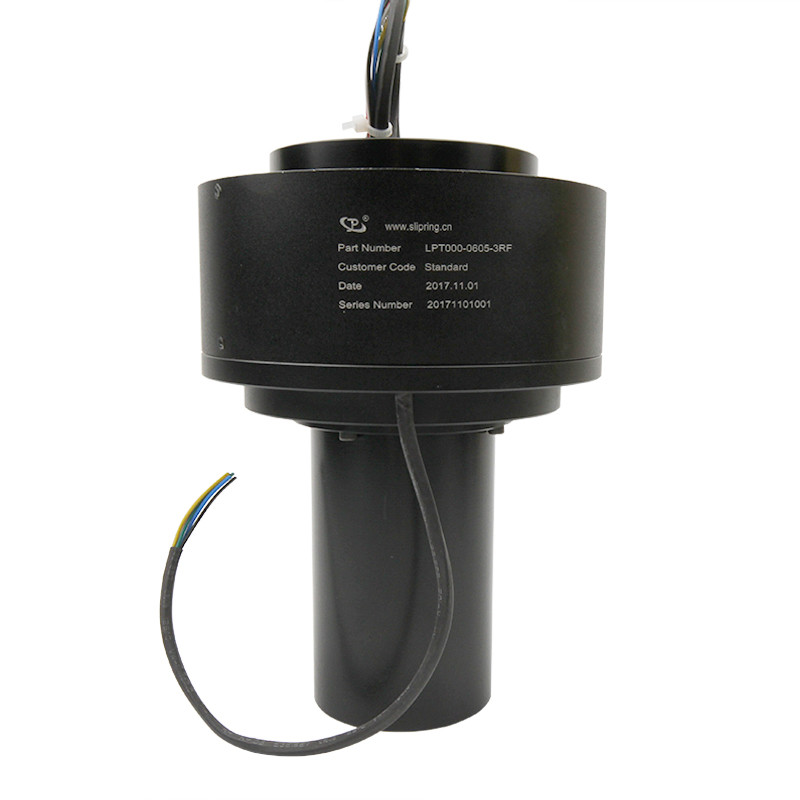

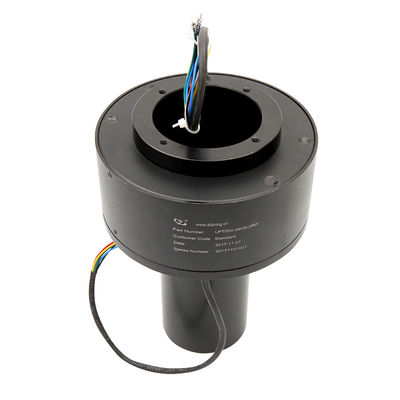

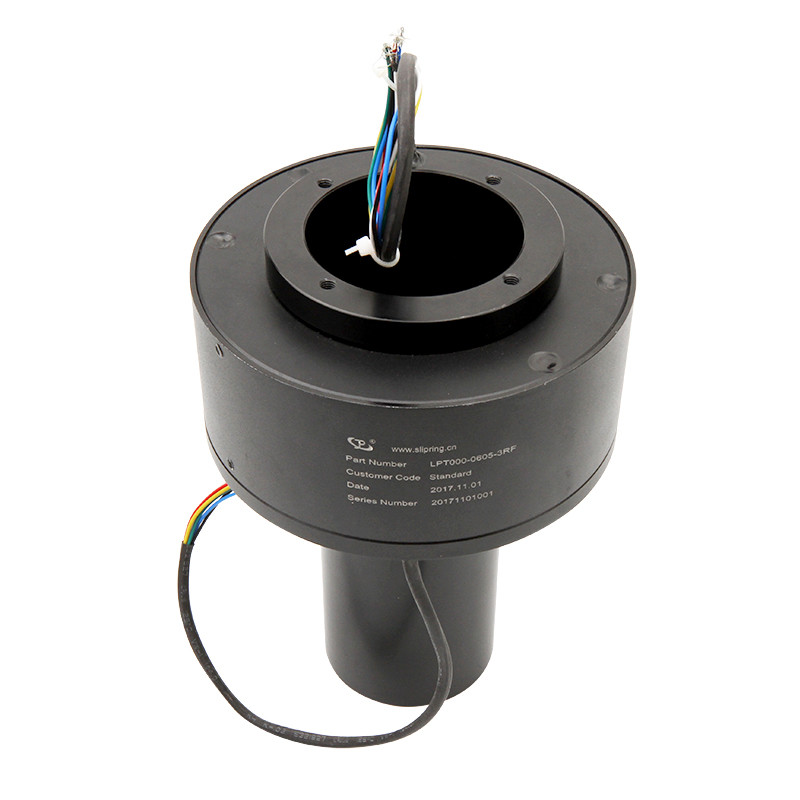

Radar electrical slip ring picture
