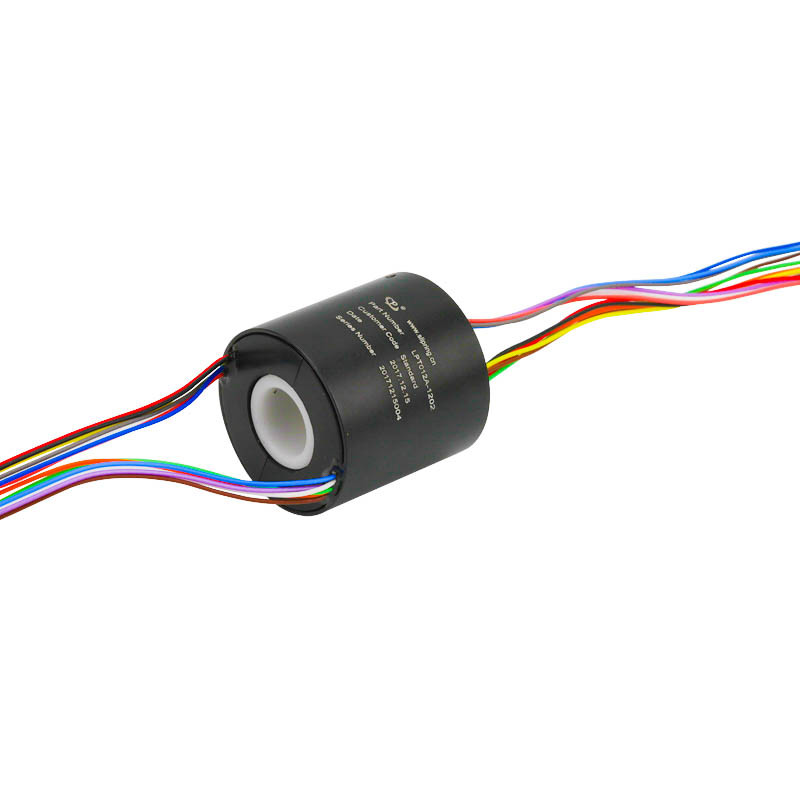

12 Circuits Customized Slip Ring 240VAC IP54
Product Details
| Via Diameter | 25.4mm | Ring Current | 12 |
|---|---|---|---|
| Working Speed | 0~300rpm | Voltage | 240 VAC/DC |
| Insulation | 500MΩ@500VDC | Contact | Precious Metal |
| Humidity | ≤60%RH | Protection Grade | Protection Grade |
| Highlight | 12 circuits customized slip ring,customized slip ring 240VAC,Wind Generators modular slip ring |
||
Product Description
Description
The LPT025-1205 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.
Specification
| Circuits | 12 |
| Current Rating | 5A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | 1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Hole Diameter | 25.4 mm |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Wire Length | 300mm (rotor), 300mm (stator) |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | Protection Grade |
Outline Drawing
