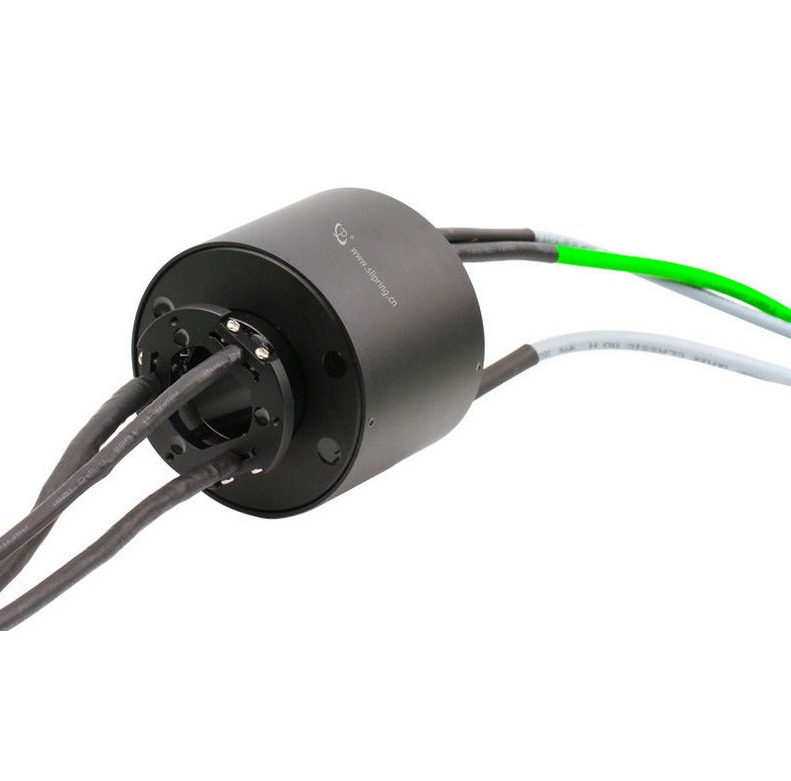

15 Circuit Through Bore Ethernet Slip Ring for Power and Signal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 15 Circuits | Operating Speed | 0-300rpm |
|---|---|---|---|
| Voltage Rating | 380VAC/24VAC | Electric Noise | 70mΩ Min |
| Working Voltage | 380VAC/24VAC | Dielectric Strength | ≥1000V@50Hz(current), 300V@50Hz(signal) |
| Insulation Resistance | 500MΩ@500VDC(current), 100MΩ@300VDC(signal) | Through Bore | Φ38.1mm |
| Contact Material | Precious Metal | Housing Material | Aluminum Alloy |
| Wire Length | Rotor:3000mm, Stator:1000mm | Temperature Range | -20°C~+60°C |
| Humidity | ≤60%RH | IP Rating | IP50 |
| Wire Size | Lapp 10019917 Wire/ Lapp 0028892 Wire Simens Wires (6XV1840-2AH10) | ||
| Highlight | 15 circuit through bore slip ring,ethernet slip ring for power,through hole slip ring signal |
||
Product Description
Through Bore Ethernet Slip Ring 15 Circuits, Transmitting Current and Signal
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Circuits | 15 circuits |
| Operating Speed | 0-300rpm |
| Voltage Rating | 380VAC/24VAC |
| Electric Noise | 70mΩ Min |
Product Overview
Bargain Price Only in Alibaba
LPT038 series slip ring is a standard through-hole conductive slip ring with multiple channels and current options.
- 360 degree infinite rotation, meeting the hybrid transmission of power and signal
- Advanced fiber brush technology ensures low friction, low contact resistance, frictionless debris, and maintenance-free operation
- Standardized, modular design with mature technology for quick response to market demand
Applications
- Process control equipment
- Emergency lighting, robotics, palletizing machines
- Heavy equipment turrets or cable reels
- Packaging/wrapping machinery
- Medical equipment
- Rotary index tables
- Semiconductor handling systems
- Industrial machinery
- Exhibit display machinery
- High-speed cameras
Technical Specifications
| Circuits | 5 circuits × RS422 Signal, 6 circuits × 5A, 4 circuits × Ethernet |
| Working Voltage | 380VAC/24VAC |
| Dielectric Strength | Between circuits ≥1000V@50Hz (current), 300V@50Hz (signal) |
| Insulation | 500MΩ@500VDC (current), 100MΩ@300VDC (signal) |
| Electrical Noise | ≤70mΩ (50rpm) |
| Working Speed | 0~300 rpm |
| Through Bore | Φ38.1mm |
| Contact | Precious Metal |
| Housing | Aluminum Alloy |
| Wire Size | Lapp 10019917 wire/Lapp 0028892 wire Simens Wires (6XV1840-2AH10) |
| Wire Length | Rotor: 3000mm, Stator: 1000mm |
| Temperature | -20°C~+60°C |
| Humidity | ≤60%RH |
| IP Rating | IP50 |
Competitive Advantages
- Compact design to fit in demanding space constraints
- Low torque minimizes system torque budget
- Rapid delivery
- Long operational lifetime
Installation Instructions
The slip ring body shall not be used for bearing, and the wire shall not be subjected to external pulling force. When installing, the rotor and stator should not be hard-wired. We recommend fixing the slip ring on the rotating shaft with four set screws, inserting the rotation-proof piece, and combing the wire to avoid interference or breakage. Slip rings are precision electrical components - in harsh environments, add protective measures or consider a custom-made slip ring with higher protection.
Company Advantages
- 12,000 square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Long-term partnerships with global enterprises and worldwide agents
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for diverse equipment requirements
- Fast delivery capabilities
Typical Applications
Company Information
Frequently Asked Questions
1. What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.
3. What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
4. How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
5. Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your specific needs. Contact us to begin your custom slip ring project.
