12 Circuit 10A Through Hole Slip Ring 24.5mm Precious Metal Contact
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Rating | 10A | Voltage | 240 VAC/DC |
|---|---|---|---|
| Circuit Number | 12 | Working Speed | 0~300 Rpm |
| Hole Diameter | 25.4 Mm | Dielectric Strength | 1000V@50Hz Between Circuits |
| Insulation Resistance | 500MΩ@500VDC | Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy | Wire Length | 300mm (rotor), 300mm (stator) |
| Working Temperature | -20~+60℃ | Humidity | ≤60%RH |
| Protection Grade | IP50 | Max Voltage | 10000 Volts |
| Max Current | 5000 Amps | ||
| Highlight | 10A through hole slip ring,24.5mm slip ring with precious metal,12 circuit slip ring with warranty |
||
Product Description
Through Hole Slip Ring - 12 Circuits 10A with 24.5mm Hole Diameter
Precious Metal Contact for Reliable Performance
Key Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Current Rating | 10A |
| Voltage | 240 VAC/DC |
| Circuit Number | 12 |
| Working Speed | 0-300 rpm |
Product Overview
LPT slip rings are through-hole slip rings designed for applications requiring rotation while transmitting power or signals. The center hole can accommodate drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, and other joints.
Special promotional pricing available exclusively through our Alibaba store.
LPT025-1210 Slip Ring Features
- 240V operating voltage capacity
- 300rpm maximum rotating speed
- Precious metal contacts for reliable connection
- Durable aluminum alloy housing
- Extended service life
- Custom solutions available
- Prompt delivery options
Technical Specifications
| Circuits | 12 |
| Current Rating | 10A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | 1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Hole Diameter | 25.4 mm |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Housing Material | Aluminum alloy |
| Wire Length | 300mm (rotor), 300mm (stator) |
| Working Temperature | -20°C to +60°C |
| Humidity | ≤60%RH |
| Protection Grade | IP50 |
Applications
- Semiconductor handling systems
- Industrial machinery
- Packaging/wrapping machinery
- Medical equipment
- Rotary index tables
- Cable reels

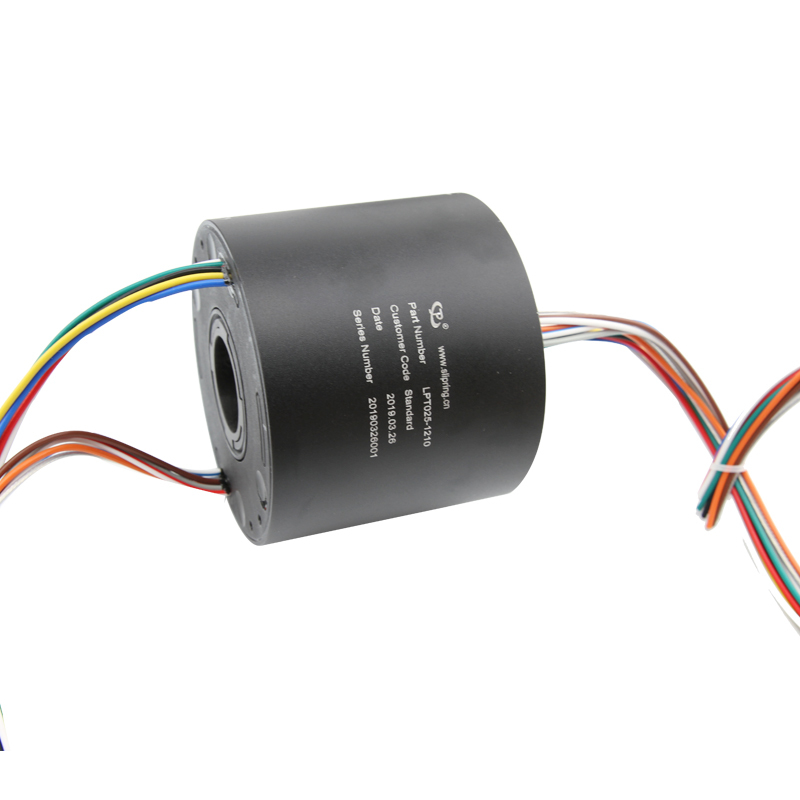

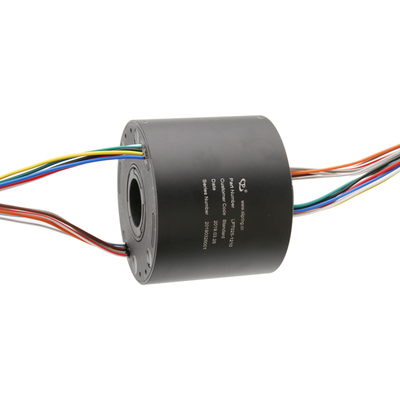

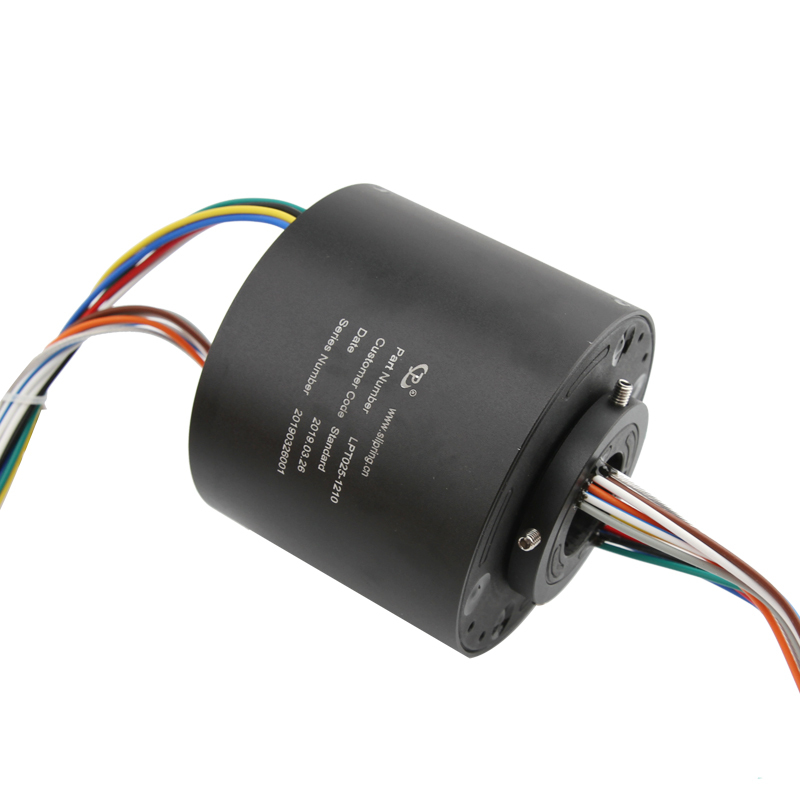

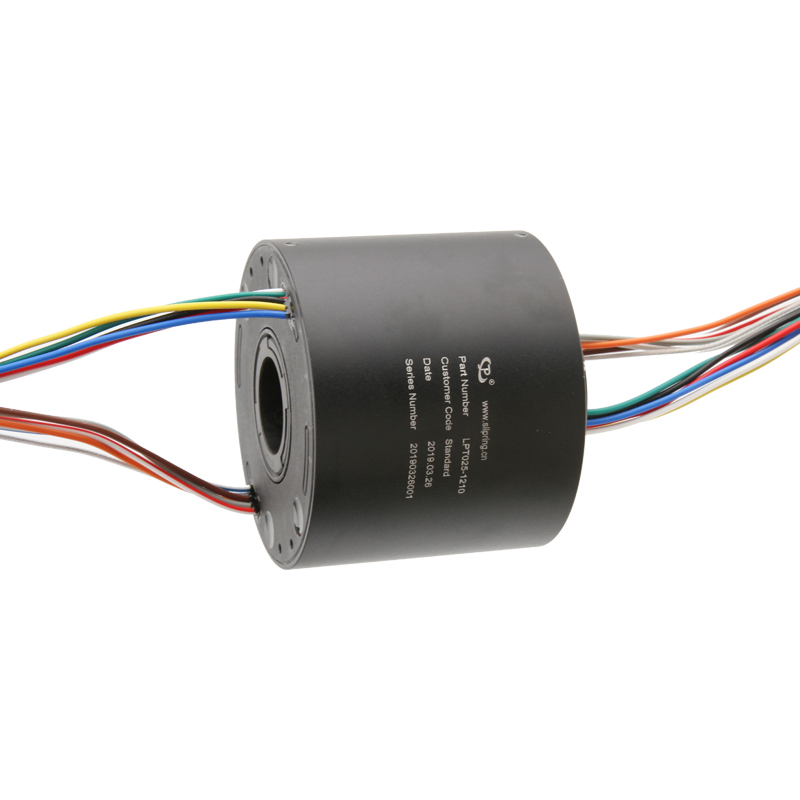

Product Images
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Long-term partnerships with global industry leaders
- Over 10,000 successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions tailored to your equipment requirements
- Fast delivery options available
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It eliminates damage-prone dangling wires and improves mechanical performance in rotating systems.
What kinds of slip rings do we provide?
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including circuits, voltage/amps per circuit, speed, and mounting type. Contact our engineers for assistance with custom solutions.
Do you provide custom slip rings?
Yes, our engineering team develops custom solutions tailored to your specific requirements. Contact us to discuss your application needs.
