6 Circuit Through Hole Slip Ring 25.4mm 10A 380VAC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuit Number | 6 | Current Rating | 10A |
|---|---|---|---|
| Voltage | 380VAC | Working Speed | 0~300 Rpm |
| Working Temperature | -20~+60℃ | Hole Diameter | 25.4mm |
| Dielectric Strength | 1000V@50Hz Between Circuits | Insulation | 500MΩ@500VDC |
| Electrical Noise | ≤70mΩ | Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy | Wire Size | AWG17# Tin Plated Teflon UL |
| Wire Length | 300mm (rotor), 300mm (stator) | Humidity | ≤60%RH |
| Protection Grade | IP50 | ||
| Highlight | 6 circuit through hole slip ring,25.4mm slip ring 10A,380VAC through hole slip ring |
||
Product Description
Standard Through Hole Slip Ring - 25.4mm Hole Size, 6 Circuit, 10A, 240V
Product Attributes
| Type | Electronic Accessories |
| Circuit Number | 6 |
| Current Rating | 10A |
| Voltage | 380VAC |
| Working Speed | 0~300 rpm |
| Working Temperature | -20~+60℃ |
| Hole Diameter | 25.4mm |
Product Description
Bargain Price Only in Alibaba
LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.
Key Features
- Transmit analog and digital signal
- The power and signal are mixed transmitted, and the signal categories are as follows:
- Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP, etc.
- HD video: SDI, LVDS, etc.
- Serial communication: RS232, RS485, RS422, etc.
- Universal Serial Bus: USB2.0
- Industrial Fieldbus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet, etc.
- Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
- Long service life, maintenance-free
- Easy to install
Main Applications
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test equipment
- Exhibition display equipment
- Robots
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging machinery
- Ship offshore equipment
- Construction machinery
Technical Specifications
| Circuits | 12 |
| Current Rating | 5A |
| Voltage | 380VAC |
| Dielectric Strength | 1000V@50Hz between circuits |
| Insulation | 500MΩ@500VDC |
| Electrical Noise | ≤70mΩ |
| Hole Diameter | 25.4 mm |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Aluminum alloy |
| Wire Size | AWG17# Tin Plated Teflon UL |
| Wire Length | 300mm (rotor), 300mm (stator) |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP50 |

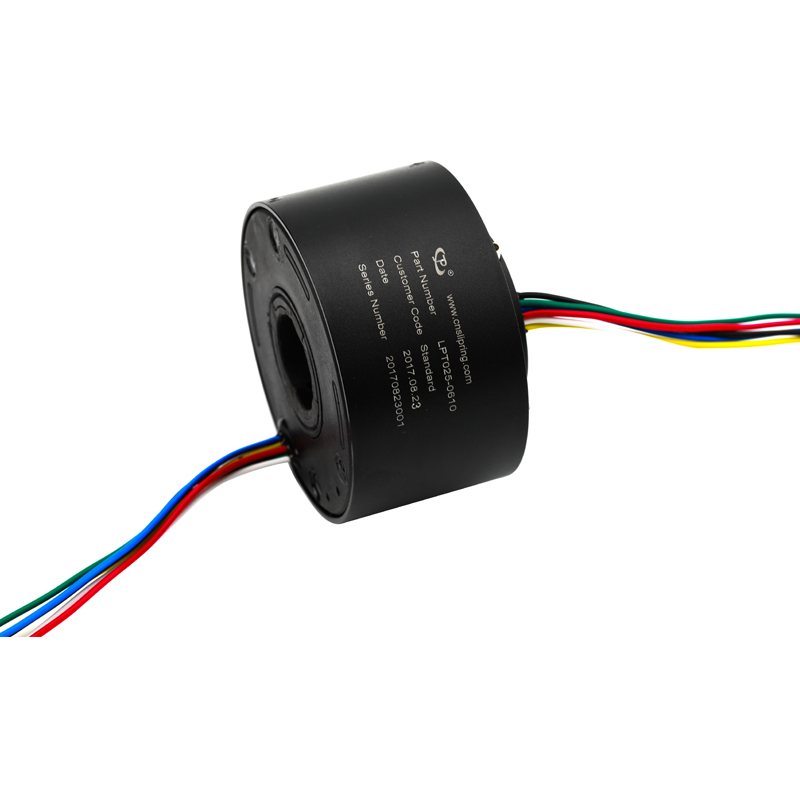

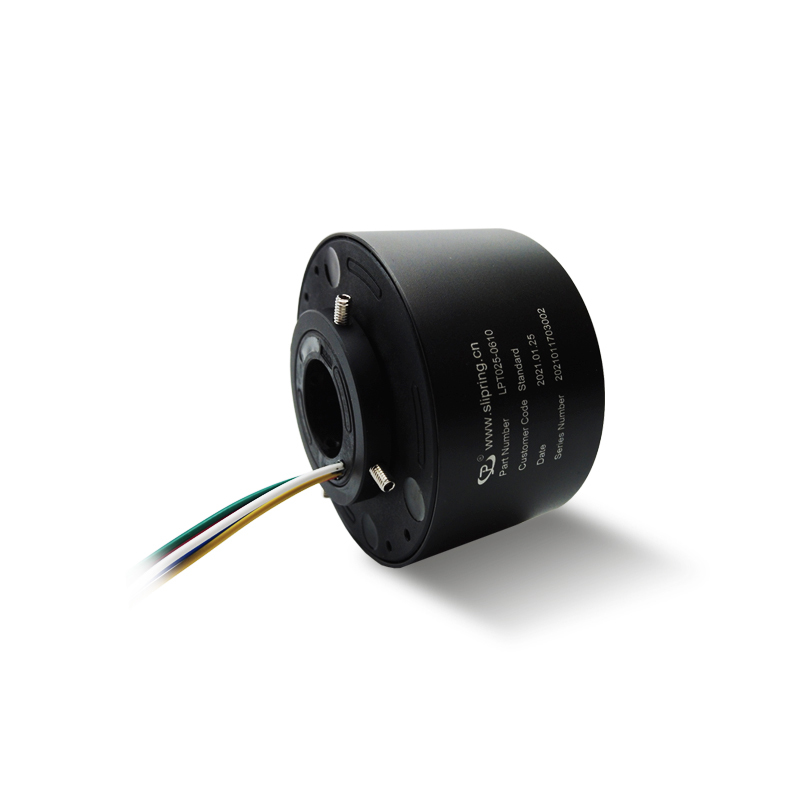

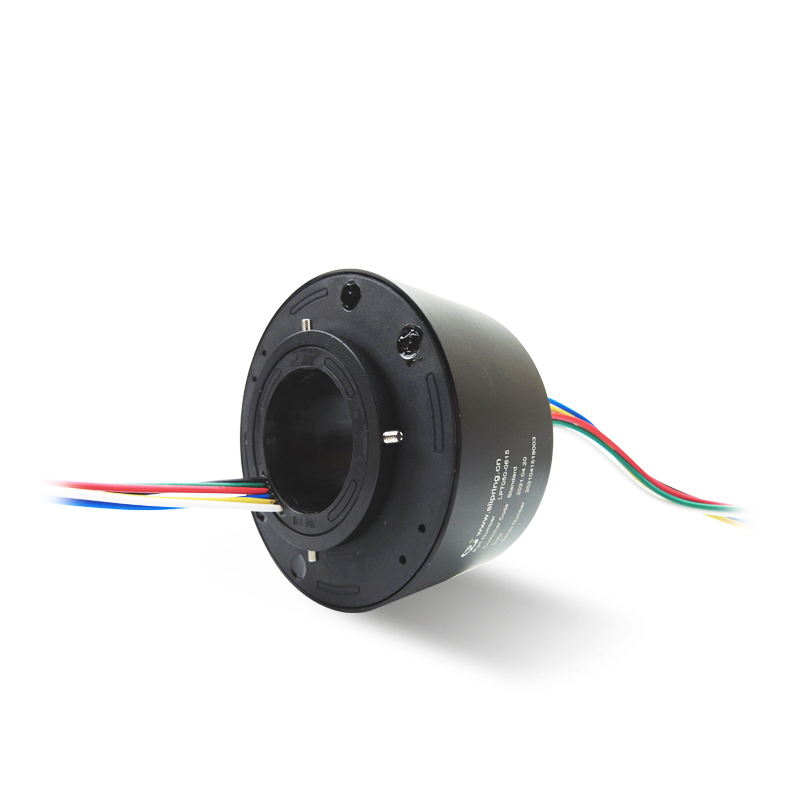

Product Images
Company Advantages
- With a large plant of over 12,000 square meters and more than 500 employees
- The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
- Long-term cooperation with global famous enterprises and agents all over the world
- With Over 10,000 designs with success in civil, military, commercial and industrial applications
- Founded in 1996, with more than 20 years of production and R & D experience
- Providing free custom slip rings solutions, which can be suitable for a variety of equipment
- Fast delivery
Frequently Asked Questions
What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
What kinds of slip rings do we provide?
- Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
- Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
Do you provide custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
