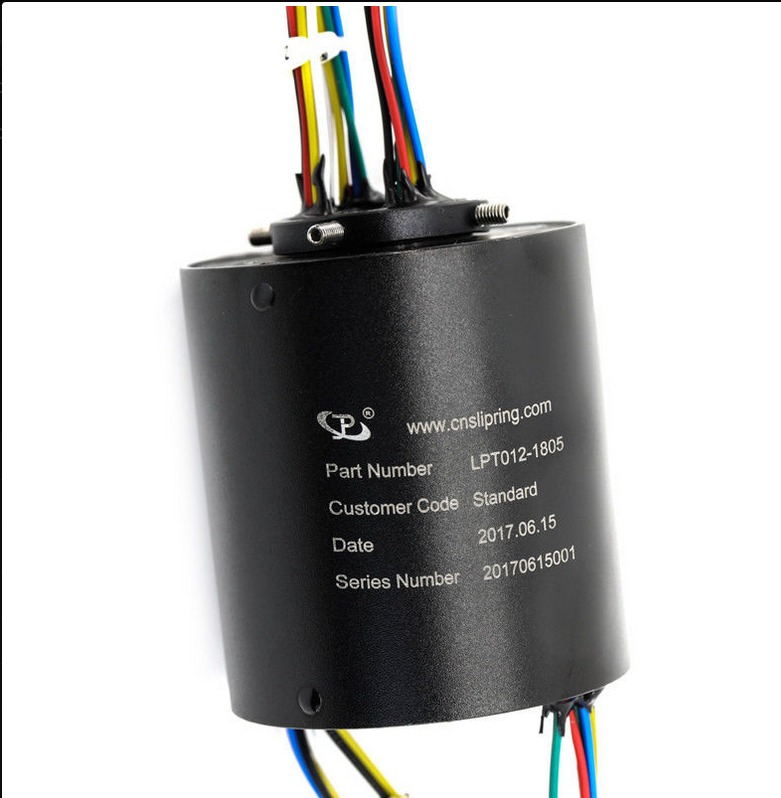

18 Circuit Through Hole Slip Ring 5A 12mm ID

  • 18 Circuit Through Hole Slip Ring 5A 12mm ID
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPT012-1805
Minimum Order Quantity 1
Price $116.20-140

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 18 Current Rating 5A Per Wire
Inner Diameter 12mm Electrical Noise 1mΩMin
Voltage Rating 380VAC/DC Contact Material Precious Metal
Insulation Resistance 100MΩ@500VDC Hole Size 12.7mm
Max Current 5000A Max Voltage 10000V
Center Hole Range 0-1000mm Mounting Type Thru-shaft
Environmental Sealing Yes Operating Orientation Any
Maintenance Requirement Zero
Highlight

18 circuit through hole slip ring

,

5A through hole slip ring

,

12mm ID slip ring
Product Description
Electric Swivel Slip Ring, 18 Circuits Hole Size 12.7mm 18 Circuit 5A
Product Overview

LPT slip rings are through-hole slip rings designed for reliable power and signal transmission in rotating systems. The center hole can accommodate drive shafts or gas-liquid passages while integrating various transmission solutions.

Key Specifications
Type Electronic Accessories, through bore slip ring
Number of circuits 18
Current rating 5A per wire
ID 12mm
Electrical Noise 1mΩMin
Voltage 380VAC/DC
Contact Material Precious metal
Insulation Resistance 100MΩ@500VDC
18 Circuit Through Hole Slip Ring 5A 12mm ID 0
Product Description

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, collector or electric swivel.

This slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. It improves mechanical performance, simplifies system operation and eliminates damage-prone wires dangling from movable joints.

Key Features
  • Thru-shaft mounting capability
  • Can be designed to fit existing equipment
  • Combines power and control signals
  • Minimal electrical noise (1mΩMin contact resistance)
  • Zero maintenance design
  • Environmentally sealed
  • Rugged construction
  • High reliability
  • Unaffected by vibration
  • Can be mounted in any orientation
Applications
  • Ultrasonic gages
  • Eddy current probes
  • AC/DC power transmission
  • Servo & stepper control signals
  • Power input & temperature control of heated rollers
  • Instrumentation signals
  • Video signals
  • Communications systems
  • Digital data transmissions
18 Circuit Through Hole Slip Ring 5A 12mm ID 1
Manufacturer Advantages
  • 12,000 square meter production facility with 500+ employees
  • National High and New Technology enterprise with 69 patents
  • 20+ years of production and R&D experience since 1996
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Global partnerships with famous enterprises and agents worldwide
  • Free custom slip ring solutions available
  • Fast delivery times
