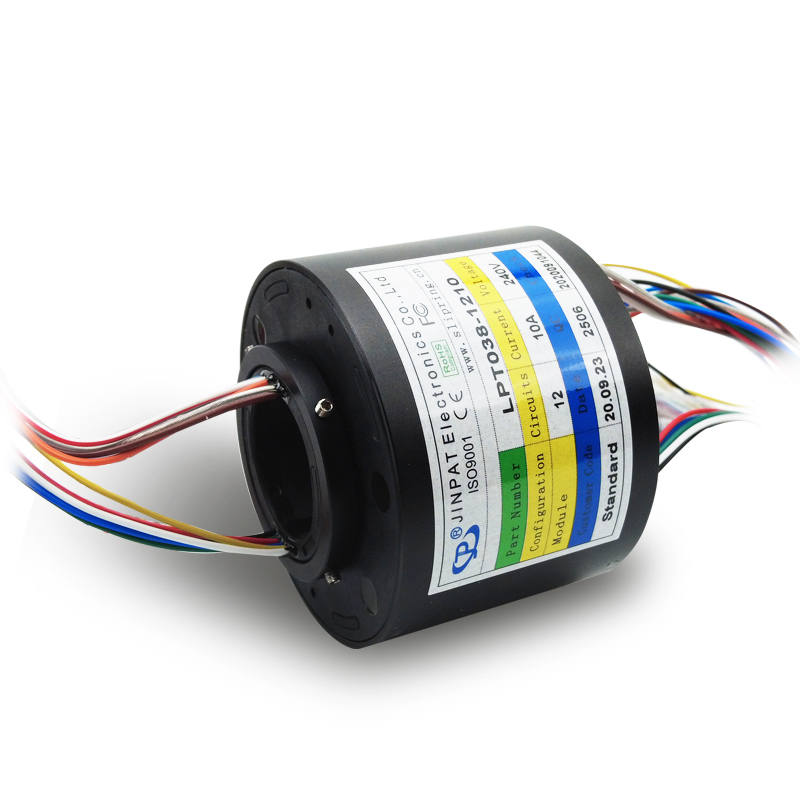

38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal
Product Details
| Hole Diameter | 38.1 Mm | Working Speed | 0~300 RPM |
|---|---|---|---|
| Circuits | 12 | Current Rating | 10A |
| Voltage | 240 VAC/DC | Dielectric Strength | ≥1000V@50Hz Between Circuits |
| Insulation Resistance | ≥500MΩ@500VDC | Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy | Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH | Protection Grade | IP50 |
| Contact Type | Fiber Brush | Max Current | 10A Per Wire |
| Bearing Type | Precision Ball Bearings | ||
| Highlight | 38mm hollow slip ring 12 circuit,hollow slip ring 10A 300RPM,through hole slip ring precious metal |
||
Product Description
Electrical Slip Ring - Long Life 12 Circuit 10A with Hollow 38mm
Product Attributes
| Type | Electronic Accessories |
| Contact | Precious metal |
| Hole Diameter | 38.1 mm |
| Working Speed | 0~300 RPM |
Product Description
The LPT038-1210 through bore slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating structures.
This LPT038 series slip ring features a φ38.1mm bore, capable of transmitting 10A current across 12 circuits. Utilizing advanced fiber brush technology, it delivers reliable performance with stable contact and excellent conductivity.
Key Features
- 12 circuit configuration
- Precious metal contacts for durability
- 10A current capacity per wire
- Precision ball bearings for extended service life
- Continuous operation up to 300 RPM
- Compact, space-saving design
- Optional sealed units available
- Low torque operation minimizes system requirements
- Rapid delivery available
Technical Specifications
| Circuits | 12 |
| Current Rating | 10A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation | ≥500MΩ@500VDC |
| Hole Diameter | 38.1 mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP50 |
Typical Applications
- Radar antenna systems
- Rotary platforms
- Heavy engineering machinery
- Packaging equipment
- Test and measurement systems
Outline Dimensions

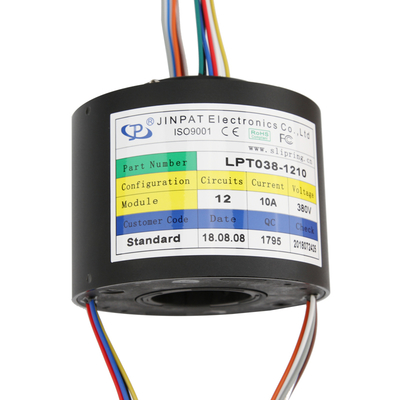

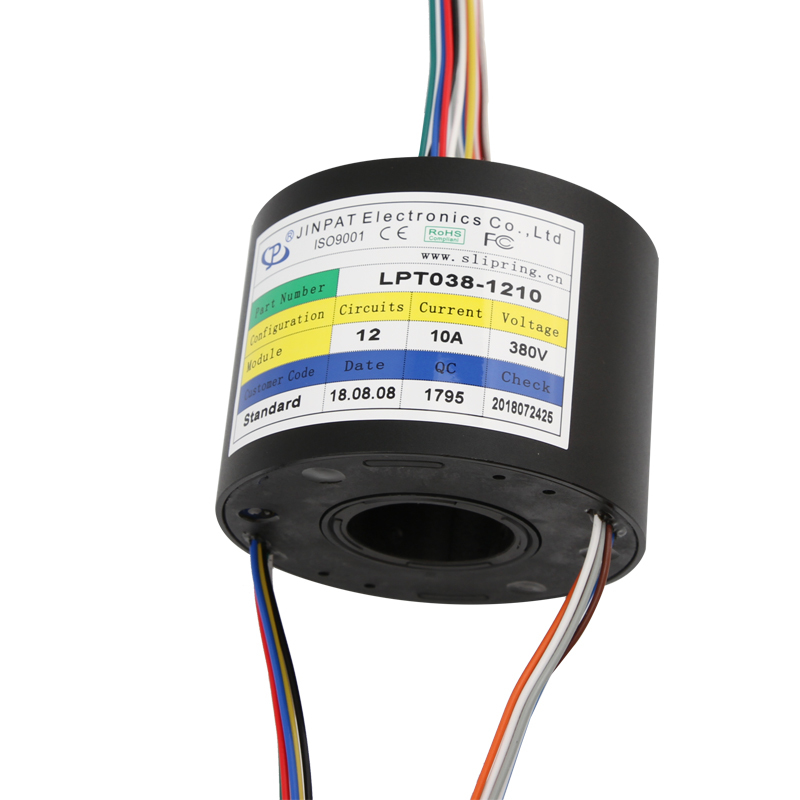

Product Display
Manufacturer Advantages
- 12,000+ square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- Established partnerships with global industry leaders
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Founded in 1996 with 20+ years of R&D and manufacturing experience
- Custom slip ring solutions available for specialized equipment requirements
- Fast delivery options
