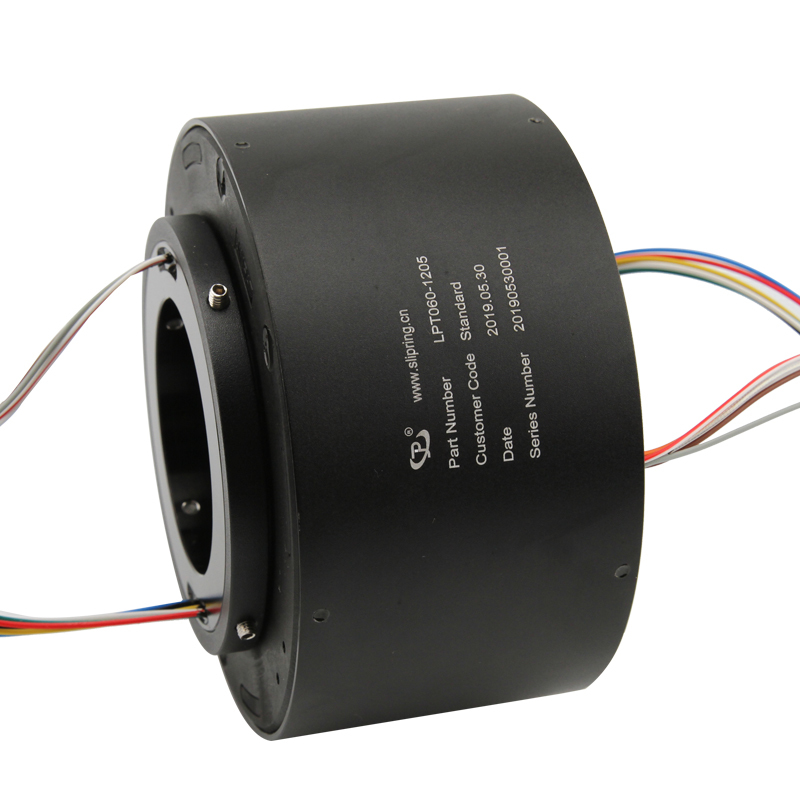

12 Circuit Through Hole Slip Ring 5A 300rpm for Industrial Automation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Rating | 5A | Number Of Circuits | 12 |
|---|---|---|---|
| Working Speed | 0-300rpm | Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH Or Higher | Voltage Rating | 380VAC/DC Or Higher |
| Dielectric Strength | ≥800V@50Hz Between Each Circuit | Insulation Resistance | 50MΩ@ 500VDC |
| Electrical Noise | 30mΩ Min | Contact Material | Precious Metal |
| Lead Wire Length | Standard 300mm (11.811inch) | Housing Material | Aluminum Alloy |
| Torque | ≤9.25 G*m (for Reference) | Protection | 50 |
| Ethernet Rate | 10Mbps/100Mbps/1000Mbps | ||
| Highlight | 12 circuit through hole slip ring,5A industrial automation slip ring,300rpm through hole slip ring |
||
Product Description
Electrical Swivel Connector - Multiple Channel Current Optional
For Multi-Industry Equipment Ethernet Slip Rings
Product Attributes
| Type | Electronic Accessories |
| Current Rating | 5A |
| Number of Circuits | 12 |
| Working Speed | 0-300rpm |
Product Description
LPT series are through-bore slip rings designed for multi-industry applications. The center hole can pass through drive shafts or gas-liquid passages, and can integrate high frequency, fiber, encoder, waveguide, gas and liquid joints.
Using advanced fiber brush technology ensures reliable contact under extremely low friction. Available with center holes from 0 to 1000mm, current from mA to 5000 amps, and voltage up to 10000 volts to meet diverse transmission needs.
Key Features
- Transmits both analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
- HD video (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB2.0
- Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
- Sensor signals (thermal resistance, thermocouple, strain gauge)
- Long service life with maintenance-free operation
- Easy installation
Applications
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test equipment
- Exhibition and display equipment
- Robotics
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging machinery
- Ship offshore equipment
- Construction machinery
Technical Specifications
| Circuits | 12 circuits |
| Operating Speed | 0-300rpm |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical Specifications | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 5A per circuit |
| Dielectric Strength | ≥800V@50Hz between each circuit |
| Insulation Resistance | 50MΩ@ 500VDC |
| Electrical Noise | 30mΩ Min |
| Mechanical Specifications | |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g*m (for reference) |
| Protection | IP50 |
Product Images
