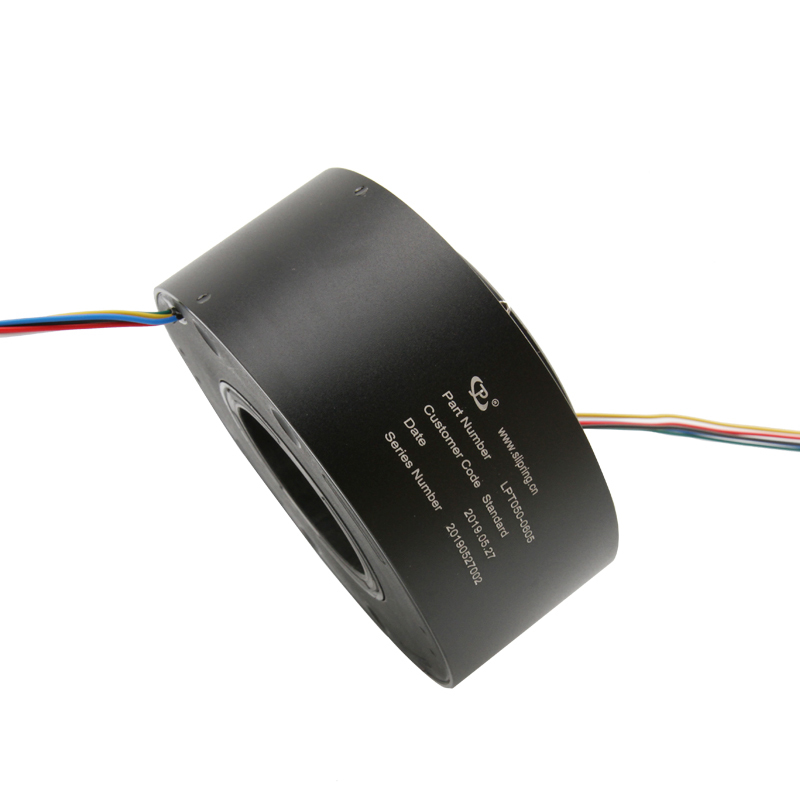

50mm Through Bore Slip Ring 6 Circuits 5A 300rpm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bore Size | 50mm | Operating Speed | 0-300rpm |
|---|---|---|---|
| Number Of Circuits | 6/12/18/24 | Current Rating | 5A Per Circuit |
| Voltage Rating | 380VAC/DC Or Higher | Dielectric Strength | 1000VAC@50Hz |
| Insulation Resistance | ≥500MΩ@500VDC | Dynamic Contact Resistance | 1mΩ Min. |
| Contact Material | Engineering Plastic | Housing Material | Aluminum |
| Torque | ≤0.1N.m/6 Circuits, +0.03N.m/6 Circuits | Wire Type | Teflon Or Others |
| Wire Length | Rotor/stator:300mm | Temperature Range | Industrial: -20℃~+60℃ Military: -50℃~+80℃ |
| Protection Grade | IP50 | ||
| Highlight | 50mm through bore slip ring,6 circuit slip ring 5A,300rpm slip ring with warranty |
||
Product Description
LPT Through Bore Slip Rings - 50mm Bore Size, 6 Circuits, 5A
Bargain Price Only in Alibaba
Product Overview
LPT series through-bore slip rings feature a center hole that can accommodate drive shafts, gas-liquid passages, and can integrate high frequency, fiber, encoder, waveguide, gas and liquid joints. Utilizing advanced fiber brush technology ensures reliable contact with minimal friction. Available with center holes from 0 to 1000mm, current ratings from mA to 5000A, and voltage up to 10000V to meet diverse transmission requirements.
Key Features
- Transmits both analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
- HD video (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB2.0
- Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
- Sensor signals (thermal resistance, thermocouple, strain gauge)
- Long service life with maintenance-free operation
- Easy installation process
Technical Specifications
Electrical & Electronics
| Number of Circuits | 06/12/18/24 |
| Current | 5A(Signal)/10A/15A |
| Voltage | 240VAC/DC |
| Dielectric Strength | 1000VAC@50Hz |
| Insulation Resistance | ≥500MΩ@500VDC |
| Dynamic Contact Resistance | 1mΩ min. |
Mechanical
| Rotating Speed | 0-300rpm |
| Contact Material | Engineering plastic |
| Housing Material | Aluminum |
| Torque | ≤0.1N.m/6 circuits, +0.03N.m/6 circuits |
| Wire Type | Teflon or others |
| Wire Length | rotor/stator:300mm |
Environmental
| Temperature | Industrial: -20℃~+60℃ Military: -50℃~+80℃ |
| Humidity | 60%RH or higher |
| Protection Grade | IP50 |
| Life Span | 10 million (customizable) |
Product Outline Drawing
Wire Color Code
Applications
Industrial automation equipment, Medical equipment, Wind power equipment, Test equipment, Exhibition/display equipment, Robots, Turntable equipment, Amusement equipment, High-speed railway equipment, Packaging machinery, Ship offshore equipment, Construction machinery
Company Advantages
- 12,000 square meter facility with 500+ employees
- Recognized as "National High and New Technology" company with 69 patents
- Long-term partnerships with global enterprises worldwide
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery times
Frequently Asked Questions
What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. It improves mechanical performance, simplifies system operation and eliminates damage-prone wires dangling from movable joints.
What kinds of slip rings do we provide?
- Electrical Slip rings (capsule slip ring, through-bore slip ring, miniature slip ring)
- Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you provide custom slip rings?
Yes, our engineers will develop perfect solutions for your needs. Contact us to get started with custom requirements.
