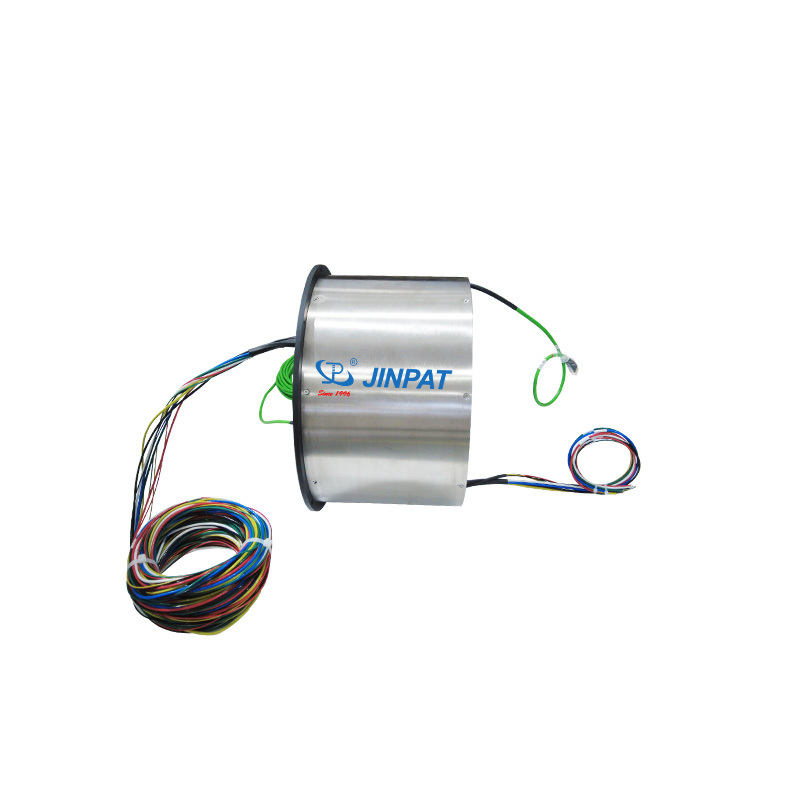

Hollow Shaft Slip Ring 6x35A 4x10A 250mm for Packaging Machinery

  • Hollow Shaft Slip Ring 6x35A 4x10A 250mm for Packaging Machinery
  • Hollow Shaft Slip Ring 6x35A 4x10A 250mm for Packaging Machinery
  • Hollow Shaft Slip Ring 6x35A 4x10A 250mm for Packaging Machinery
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT250-0635-0410-04S
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ring Current 6*35A+4*10A+1*Powerlink Signal Operating Speed 0-20 Rpm
Insulation Resistance ≥500MΩ@500VDC(Power)；≥100MΩ@100VDC(Signal) Shell Material Aluminum Alloy + Stainless Steel
Lead Wire Length Rotor：500mm；Stator：10000mm Operating Temperature -20℃~+60℃ (Industrial)
Inner Diameter（ID） Ø250mm Lifespan ＞50 Million Rpm
Voltage 60V/48V DC Humidity ≤60%RH
Protection Level IP54（Vertical Installation）
Highlight

Hollow shaft slip ring for packaging machinery

,

6x35A 4x10A rotary slip ring

,

250mm hollow shaft slip ring
Product Description
Hollow Shaft Slip Ring 6*35A+4*10A for Packaging Machinery Ø250mm
Key Specifications
Attribute Value
Ring Current 6*35A+4*10A+1*Powerlink Signal
Operating Speed 0-20 rpm
Insulation Resistance ≥500MΩ@500VDC(Power)；≥100MΩ@100VDC(Signal)
Shell Material Aluminum alloy + Stainless steel
Lead Wire Length Rotor:500mm；Stator:10000mm
Operating Temperature -20℃~+60℃ (Industrial)
Inner Diameter (ID) Ø250mm
Lifespan ＞50 million rpm
Voltage 60V/48V DC
Humidity ≤60%RH
Protection Level IP54 (Vertical Installation)
Product Description
High-performance hollow shaft slip ring specifically designed for packaging machinery applications. This robust component features a durable aluminum alloy and stainless steel construction with an IP54 protection rating for vertical installation.
Key Features
  • 6 power circuits * 35A + 4 circuits * 10A current capacity
  • Integrated Powerlink signal transmission
  • Dual-material construction: aluminum alloy + stainless steel
  • Extended lead wire lengths (500mm rotor, 10000mm stator)
  • Industrial-grade operating temperature range (-20℃ to +60℃)
  • High durability with lifespan exceeding 50 million rotations
  • Compact design with Ø250mm inner diameter
  • IP54 protection for demanding industrial environments
Applications
Ideal for various packaging machinery applications requiring reliable power and signal transmission in rotating systems. The robust construction and high current capacity make it suitable for continuous operation in industrial environments.
