6 Circuit 15A Through Hole Slip Ring 38.1mm 300rpm

  • 6 Circuit 15A Through Hole Slip Ring 38.1mm 300rpm
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPT038-0615
Minimum Order Quantity 1
Price $99.60-120

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 6circuits Operating Speed 0-300rpm
Working Temperature -20~ +60 Working Humidity 60%RH Or Higher
Voltage Rating 240VAC/DC Or Higher Current Rating 15A Per Circuit
Dielectric Strength ≥1000V@50Hz Between Each Circuit Insulation Resistance 500MΩ/ 500VDC
Via Diameter 38.1mm Contact Material Precious Metal
Housing Material Aluminum Alloy Protection IP50
Max Current 5000 Amps Max Voltage 10000 Volts
Center Hole 0 To 1000mm
Highlight

6 circuit through hole slip ring

,

15A through hole slip ring

,

38.1mm through hole slip ring
Product Description
6 Circuit 15A Through Hole Slip Ring 38.1mm Size
Premium Quality Slip Ring with Long Life & Maintenance-Free Operation
LPT series through-bore slip rings feature a center hole for drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction.
Key Features
  • Transmits both analog and digital signals
  • Mixed transmission of power and signals including:
    • Ethernet (10Mbps/100Mbps/1000Mbps)
    • Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, etc.)
    • HD video (SDI, LVDS)
    • Serial communication (RS232, RS485, RS422)
    • USB2.0
    • Industrial Fieldbus (CANBus, ProfiBus, etc.)
    • Sensor signals (thermal resistance, thermocouple, strain gauge)
  • Extended service life with maintenance-free operation
  • Simple installation process
Technical Specifications
Parameter Value
Circuits 6 circuits
Operating Speed 0-300rpm
Working Temperature -20°C to +60°C
Working Humidity 60%RH or higher
Voltage Rating 240VAC/DC or higher
Current Rating 15A per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 500MΩ/500VDC
Via Diameter 38.1mm
Contact Material Precious metal
Housing Material Aluminum alloy
Protection IP50
Applications
  • Industrial automation equipment
  • Medical equipment
  • Wind power equipment
  • Test equipment
  • Robotics
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging machinery
  • Ship offshore equipment
  • Construction machinery
Product Images

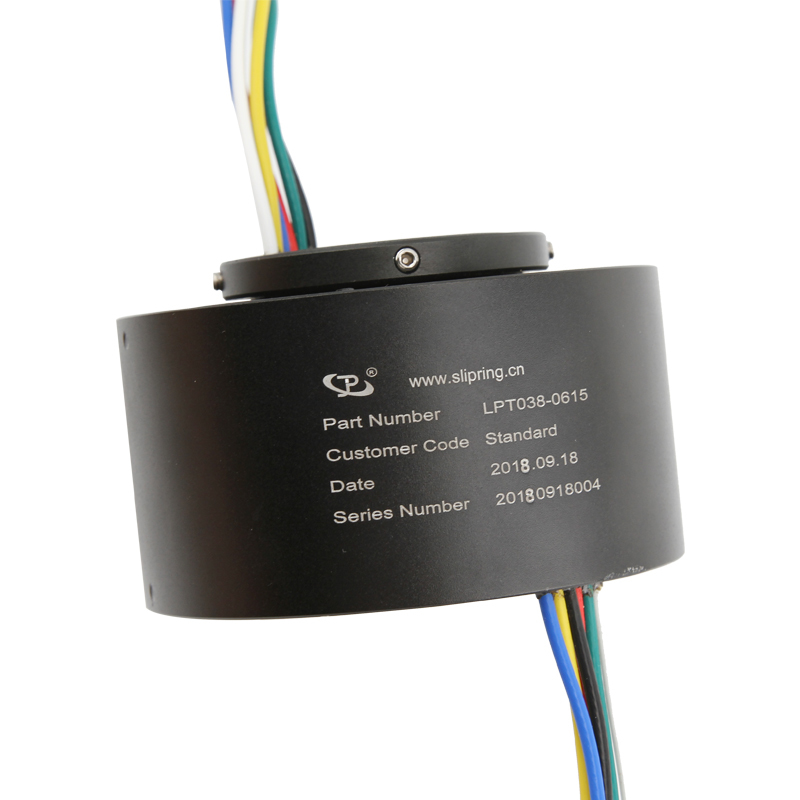

6 Circuit 15A Through Hole Slip Ring 38.1mm 300rpm 0 6 Circuit 15A Through Hole Slip Ring 38.1mm 300rpm 1
Manufacturer Advantages
  • 12,000 square meter production facility with 500+ employees
  • National High and New Technology enterprise with 69 patents
  • Global partnerships with renowned enterprises
  • 10,000+ successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of R&D experience
  • Custom slip ring solutions available
  • Fast delivery times
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
Do you provide custom slip rings?
Yes, our engineers can develop perfect custom solutions for your specific requirements. Contact us to discuss your application needs.
