Electrical Through Bore Slip Ring IP54 Protection

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT025 series
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 1-24 Circuits Operating Speed 0-100rpm
Working Temperature -20℃~ +60℃ Working Humidity 60%RH Or Higher
Contact Material Precious Metal Lead Wire Length Standard 300mm (11.811inch)
Dielectric Strength ≥1000V@50Hz Between Each Circuit Protection IP54 Or Higher
Highlight

hollow shaft slip ring

,

through bore electrical slip ring

Product Description

25.4mm Through Bore Electrical Slip Ring with IP54 Protection for Military Equipment​



Description



This unit can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.



The LPT025 series signal module slip ring provides an economical, readily available solution when a compact through-bore configuration is required. Adoption of signal module design can reduce the length of the slip ring and save installation room.



This unit provides a 25.4mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. This design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.





Specification
Circuits 1-24 circuits
Operating Speed 0-100rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH
Electrical:
Voltage Rating 380VAC/DC
Current Rating For various signals
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 50MΩ@ 100VDC
Electrical Noise ≤70mΩ (50 rpm)
Mechanical:
Contact Material Precious metal
Lead Wire Size AWG 28
Lead Wire Length Standard 300mm (11.811 inches)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54



Dimension
Electrical Through Bore Slip Ring IP54 Protection 0

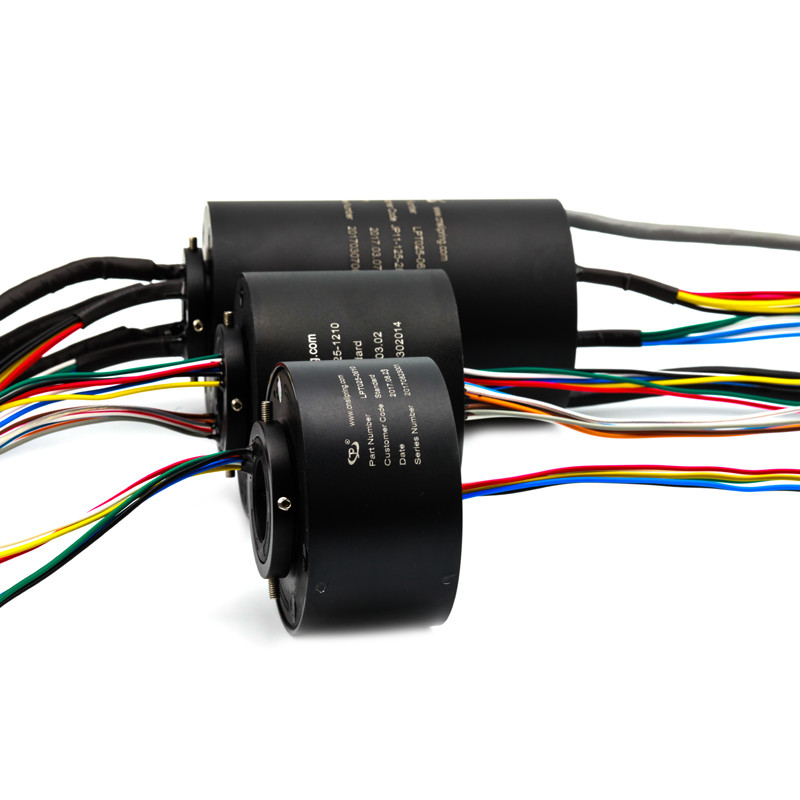

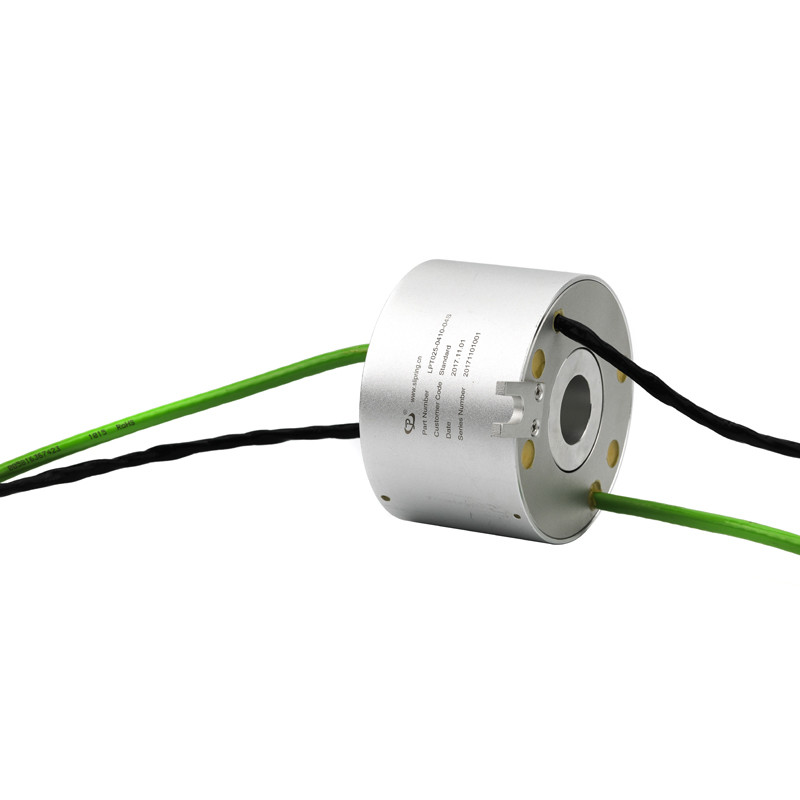

Product Display

Electrical Through Bore Slip Ring IP54 Protection 1

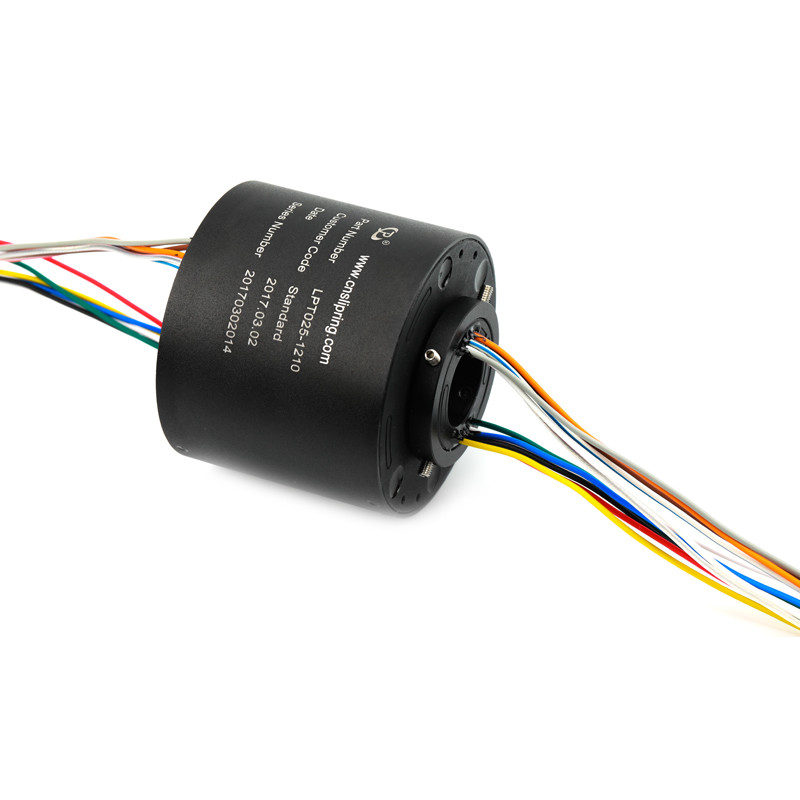

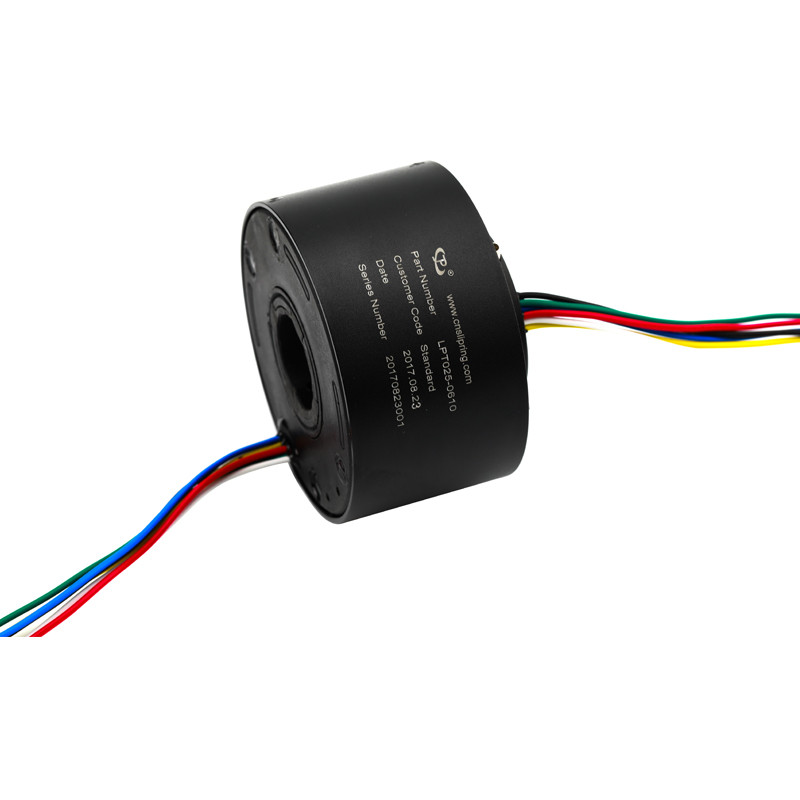

Application Picture
