12 Wires IP65 Through Bore Slip Ring with 50mm Hole Dia

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT050-12S
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature -20℃~ +60℃ Working Humidity 60%RH Or Higher
Contact Material Precious Metal Lead Wire Length Standard 300mm (11.811inch)
Dielectric Strength ≥1000V@50Hz Between Each Circuit Housing Material Aluminum Alloy
Highlight

electrical slip rings industrial

,

pneumatic slip ring

Product Description

12 Wires IP65 Through Bore Slip Ring Transmitting RS422 Signal with 50mm Hole Dia



Description



A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.



The 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT050 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.



Specification
Circuits 12 circuits * RS422 signal
Operating Speed 0~600rpm
Working Temperature -20℃~ +60℃
Working Humidity ≤90%RH
Electrical:
Voltage Rating 380VAC
Dielectric Strength ≥500V@50Hz between each circuit
Insulation Resistance 500MΩ@500VDC
Electric Noise ≤70mΩ
Mechanical:
Contact Material Gold to gold
Lead Wire Size

AWG14#/17#/22# silver plated copper

50 Ω coaxial-cable

Lead Wire Length Rotor:300mm; Stator:300mm
Housing Material Aluminum alloy
Protection IP 65
Environment
Working Temperature   -20~+60℃
Humidity   ≤90%RH
Protection Grade   IP65



Dimension

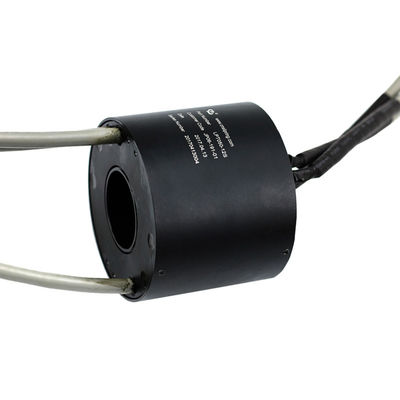

12 Wires IP65 Through Bore Slip Ring with 50mm Hole Dia 0





Application Picture

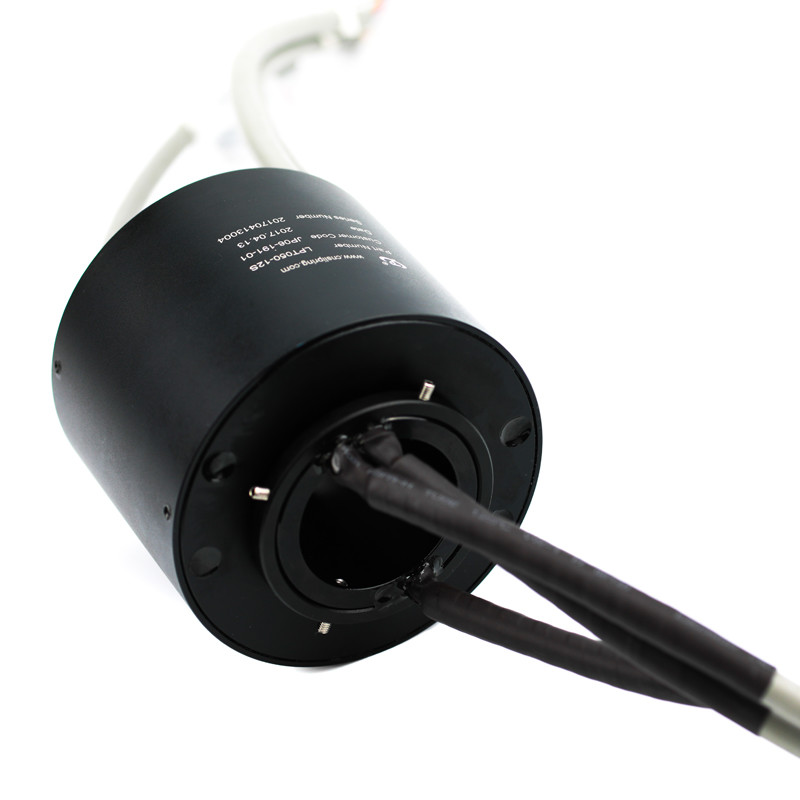

12 Wires IP65 Through Bore Slip Ring with 50mm Hole Dia 1
