IP68 High-Speed Optical Slip Ring of 7 Rotary Joints for Long-distance Communication System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mode | Fiber Optical Slip Ring | Connector Type | FC |
|---|---|---|---|
| Feature | Long Distance Transmission | Fiber Type | SM&MM |
| High Light | fibre optic slip ring,fiber optic slip ring |
||
Product Description

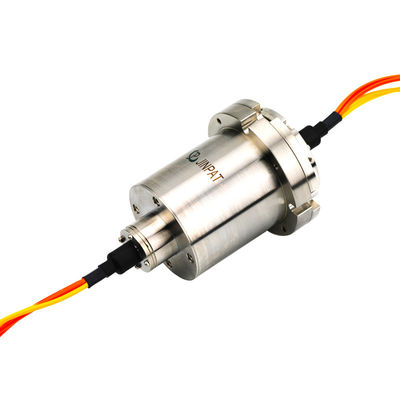

IP68 High-Speed Optical Slip Ring of 7 Rotary Joints for Long-distance Communication System
Description
Fiber Optic Rotary Joints (FORJs) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. It maintains the intrinsic advantages of fiber end to end.
It has larger amounts of light to be transmitted from sources. It is suitable for equipment that requires unlimited, continuous or intermittent rotation and transmits large capacity of data and signal from a stationary position to rotary position.
Product outline drawing
Specification
| Specifications | |||
| Fiber types | SM or MM | Jacket types | 0.9/2.0/3.0mm(Kevlar/TPU or armor) |
| Channel number | 2-7 | Connector types | FC/SC/ST/LC(PC or APC) |
| Wavelength range |
SM:1310/1550nm MM:850/1300nm |
Estimated life cycle | ＞100 million revolutions |
| Insertion loss | ＜5dB | Vibration | MIL-STD-167-1A |
| Insertion loss ripple | ＜2dB | Mechanical shock | MIL-STD-810G |
| Return loss |
SM:≥45dB MM:≥30dB |
IP rating | IP65 |
| Crosstalk | ≥50dB | Max Optical power | 23dBm |
| Maximum speed | 300rpm | Package style | Pigtails on both ends |
| Working temperature |
-20～+65℃ |
Weight, approx | 1500g(No tail cable andconnection included) |
| Storage temperature | -25~+75℃ | Fiber tpes | / |
Features
- Ruggedized for harsh environments
- Compact sizes
- Variety of configuration options
- Custom designs available
Advantage
- No contact and friction
- Safe for optic fiber to transmit signal without leakage
- Small volume and lightweight
- Providing optic and electrical compositive rotary connector
- Customized mounting flanges available
Typical application
- Robots
- Material conveying system
- Long distance control system
- Vessel system
- Medical treatment system
Product Display
Product application(fiber optic cable reel)

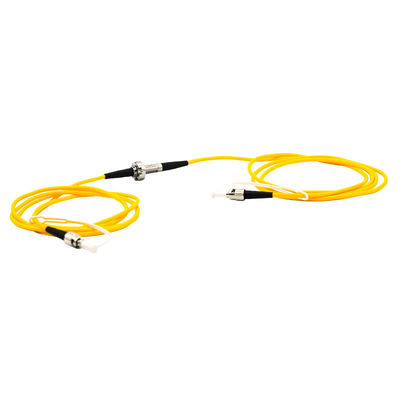

Product show
Company introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
