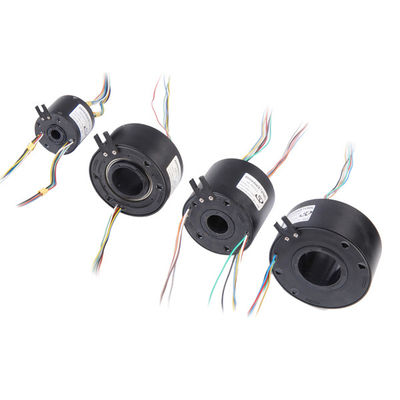

96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm

  • 96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm
  • 96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm
  • 96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm
  • 96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT096 series
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Rating 380VAC/DC Current Rating 2A/5A/10A/15A
Operating Speed 0-500rpm Circuits 1-24 Circuits
Contact Material Precious Metal Protection IP54 Or Higher
Housing Material Aluminum Alloy
Highlight

rotating slip ring

,

through bore electrical slip ring

,

96 mm Through Bore Slip Ring
Product Description

96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm High Working Speed

LPT096-2405 through hole slip ring has features of 24 circuits routing 5A per ring.The LPT096 Series provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 96.0mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT096series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.

This unit can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.

L---The length of through bore slip ring(mm)
Part Number Current/Circuit 6 circuits 12 circuits 18circuits 24 circuits
LPT096(Inner diameter96mm) 5A 69 96 123 150
10A 69 96 123 150
15A 72 102 132 162



Specification
Circuits 1-24 circuits
Operating Speed 0-500rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 380VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 1000MΩ@ 500VDC
Electrical Noise 1mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54 or higher








​​





























Dimension

96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm 0



Product Display

96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm 1

Application Picture(Mobile phone screen production equipment )
96 mm Through Bore Slip Ring of 1~24 Circuits with 500rpm 2
