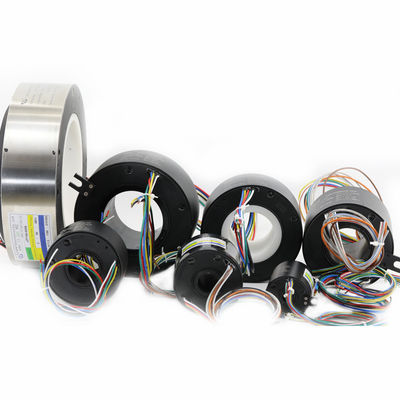

Rotary Joint Through Bore Slip Ring 6 Wires 5A With Hole Size 70 mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 6 Circuits | Operating Speed | 0-500rpm |
|---|---|---|---|
| Current Rating | 2A/5A/10A/15A | Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy | Through Bore Size | 70 Mm |
| Highlight | rotating slip ring,miniature through bore slip ring |
||
Product Description
Through Bore Slip Ring 6 Wires 5 A Per Ring With Hole Size 70 Mm
LPT070-0605 through hole slip ring has features of 6 circuits 5A per ring , The 70mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount.
Electro-Miniatures produces several series of Power Thru-Bore slip rings for use in high-current, high-power applications. Each design is optimized for specific current/circuit requirements.
While the primary purpose of the slip ring design is to transfer power, each series can also carry a combination of analog, RF and digital signals.
| Specification | |
| Circuits | 1-24 circuits |
| Operating Speed | 0-500rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical: | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 2A/5A/10A/15A per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@ 500VDC |
| Electric Noise | ≤1mΩ Min |
| Mechanical: | |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g·m (for reference ) |
| Protection | IP54 or higher |
| L---The length of through bore slip ring(mm) | |||||
| Part Number | Current/Circuit | 6 circuits | 12 circuits | 18circuits | 24 circuits |
| LPT070(Inner diameter60mm) | 5A | 52.5 | 70.5 | 88.5 | 106.5 |
| 10A | 56.7 | 78.9 | 101.1 | 123.3 | |
| 15A | 61.5 | 88.5 | 115.5 | 142.5 | |
Dimension
Application Picture
