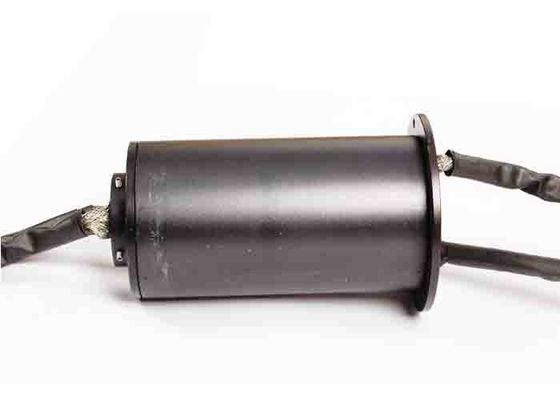

High Current 35mm Through Hole Slip Ring 35 Circuits For Welding Equipment
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Type||Through Bore Slip Ring||OD||99mm|
|ID||35mm||Working Speed||300rpm Max.|
|Current Rating||7 Circuits@30A, 2 Circuits@10A, 24 Circuits@2A||Feature||Low Resistance And Anti-abrasion|
|Application||Welding Equipment||Protection Grade||IP54|
hollow shaft slip ring,
through bore electrical slip ring,
35mm Through Hole Slip Ring
35mm Through Hole Slip Ring of 35 Circuits with High Current for Welding Equipment
|Model||through bore slip ring|
|Number of circuits||35|
|Current rating||7 circuits@30A, 2 circuits@10A, 24 circuits@2A|
Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection. Additional ring/brush assemblies are stacked along the rotating axis if more than one electrical circuit is needed. Either the brushes or the rings are stationary and the other component rotates.
- Low resistance and anti-abrasion
- Long life
- Used in high end industrial electrical equipment
- Stable structure
- Low contact material
- Rotary tables
- Packaging Machinery
- Bottling Machinery
- Cable Reels
- Machinery Turret
- Medical Equipment
- Downhole inspection equipment
- Pan and tilt heads
- Outside diameter
- Loading of each circuit
- Wire length
- Different signal compatible
- Working speed
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
Frequently Asked Questions
What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.
How long have we been in the business?
JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.
Whom with us?
We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.
Why should I choose precious metal rather than mercury for contacts?
The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.
The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.
If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
