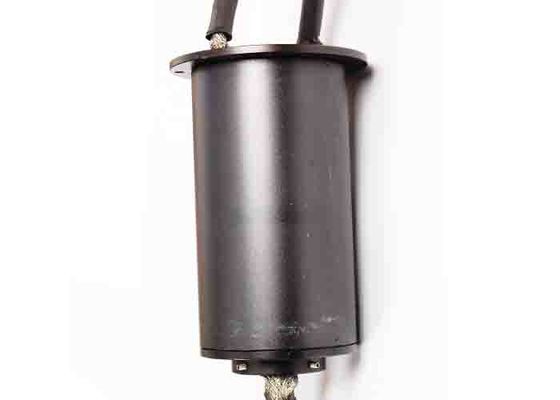

High Current 35mm Through Hole Slip Ring 35 Circuits
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| OD | 99mm | ID | 35mm |
|---|---|---|---|
| Working Speed | 300rpm Max. | Current Rating | 7 Circuits@30A, 2 Circuits@10A, 24 Circuits@2A |
| Feature | Low Resistance And Anti-abrasion | Application | Welding Equipment |
| Protection Grade | IP54 | ||
| Highlight | hollow shaft slip ring,through bore electrical slip ring,35mm Through Hole Slip Ring |
||
Product Description
35mm Through Hole Slip Ring of 35 Circuits with High Current for Welding Equipment
| Model | through bore slip ring |
| Number of circuits | 35 |
| Voltage | 380VAC |
| ID | 35mm |
| OD | 99mm |
| Current rating | 7 circuits@30A, 2 circuits@10A, 24 circuits@2A |
Description
Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection. Additional ring/brush assemblies are stacked along the rotating axis if more than one electrical circuit is needed. Either the brushes or the rings are stationary and the other component rotates.
