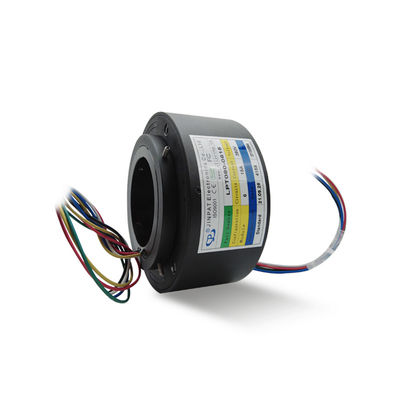

Through Bore Slip Ring ID 80mm of 6 Circuits 5A with 1mΩ Min

  • Through Bore Slip Ring ID 80mm of 6 Circuits 5A with 1mΩ Min
  • Through Bore Slip Ring ID 80mm of 6 Circuits 5A with 1mΩ Min
  • Through Bore Slip Ring ID 80mm of 6 Circuits 5A with 1mΩ Min
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT080-0615
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
ID 80mm Number Of Circuits 6
Current Rating 15A Per Wire Contact Material Precious Metal
Protection IP54 Or Higher
Highlight

hollow shaft slip ring

,

through bore electrical slip ring
Product Description

LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.



Description



The LPT080-0615 slip ring can be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.



Specification



Circuits 6
Current Rating 15A
Voltage 240 VAC/DC
Dielectric Strength 1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Hole Diameter 80 mm
Working Speed 0~300 RPM
Contact Precious metal
Housing Aluminum alloy
Wire Length 300mm (rotor), 300mm (stator)
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54



Application

  • Semiconductor handling systems
  • Industrial machinery
  • Packaging/wrapping machinery
  • Medical equipment
  • Rotary index tables
  • Cable Reels



Outline Dimension




Product Display








Tags:

through bore electrical slip ring

hollow shaft slip ring

rotating slip ring
