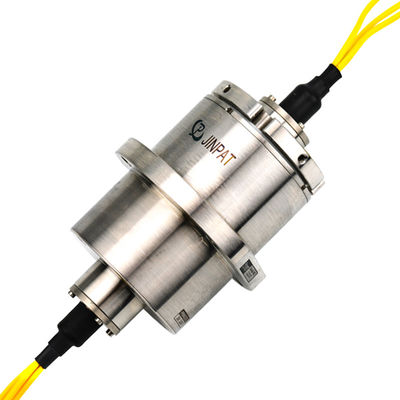

3 Channel number IP65 200rpm 2.0mm ,fiber optic rotary joint manufacturers

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPFO-03B
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Circuits 3 Circuits Fiber Size 67*123mm
IP IP65/IP68 Fiber Types SM / MM
Connector Types ST/FC/SC/LC Option Single Mode / Multi-mode
High Light

fibre optic slip ring


optical rotary joint

Product Description

3 Circuits Fiber Optical Slip Ring Rotary Joint Electrical Connector Light Weight




Fiber Optic Rotary Joints (FORJs) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. We JINPAT  Components Group has been producing Fiber Optic Rotary Joints for over twenty years.

Fiber Optic slip ring, using optical fiber as data transmission media, to solve the problem of system components of rotating connection between data transmission, provides the best technical solutions. This product is especially suitable for application in need of unrestricted, continuous or intermittent rotation, and also need to send the large capacity data from a fixed position to the rotational position, signal, it can improve the mechanical properties, simplifying the system operation, avoid activities due to the rotation of the joints on the damage of the fiber, and can be used with traditional electronic bus ring, made convergence of optical-electrical hybrid ring, transmit power and high-speed data.


Outside Drawing





  • Transfer materials
  • Single way or norma
  • SM/MM
  • Housing material
  • Drive connector


  • Ruggedized for harsh environments
  • Compact sizes
  • No contact, no friction, long lifetime.
  • No leaks, no electromagnetic interference.
  • Long distance transmission
  • Variety of configuration options
  • Combined with liquid rotation to rotate interface
  • transmission liquid and gas
  • Small size, lightweight
  • Custom designs available

Main Application

  • Fiber Optic Cable Reels
  • Robotics Vehicles
  • Material Handling Systems
  • Security Systems
  • Material Handling Systems
  • Radar Antennas
  • Medical Systems
  • Marine Population Systems


Fiber types Single or Multimode Jacket types 2.0mm(TPU or Kevlar)
Channel number 3 Connector types FC/SC/ST/LC(PC or APC)
Wavelength range



Estimated life cycle 100 million revolutions
Insertion loss <5dB Vibration MIL-STD-167-1A
Insertion loss ripple <2dB Mechanical shock MIL-STD-810G
Return loss



IP rating IP65
Crosstalk ≥50dB Max Optical power 23dBm
Maximum speed 200rpm Package style /
Working temperature



Weight, approx /
Storage temperature -25~+75℃ Fiber tpes /


Product Display

3 Channel number IP65 200rpm 2.0mm ,fiber optic rotary joint manufacturers 2
