300 Rpm 6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced slip ring technology
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Number Of Circuits||6||Voltage||240 VAC/DC|
|Current Rating||1 Amps Per Circuit||Contact Material||Gold To Gold|
|Other Application||Medical Slip Rings||One Application||CT Machine|
|Two Application||Robotics Slip Rings||Lead Length||Standard 250 Mm (9.843inch)|
compact slip ring,
small slip ring,
6 Circuits CT Slip Ring
Max. Speed Up to 300 rpm 6 Circuits 1 Amps Per Circuit CT Slip Ring 240 VAC / DC Volatge advanced slip ring technology

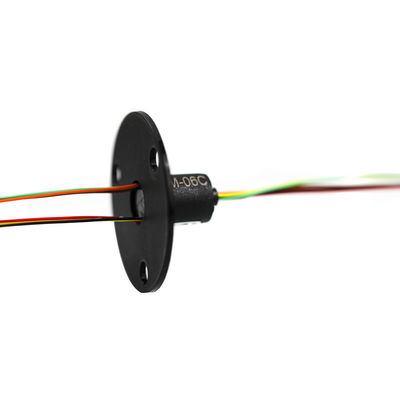

LPM-06C slip ring is a standard, off-the-shelf unit that color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
These slip rings are manufactured by utilizing premium grade metal-alloys using the edge-cutting technologies with the help of our deft team members. The offered slip rings are assembled in varied mechanical components to increase the rate of power transmission.
The family of these compact sling ring capsules permits enormous versatility in dealing with the size requirements of systems when there are no bigger models available.
- 6 circuits models 1 amps, 240VAC/DC per circuit
- Higher speed rotating speed
- Gold-Gold contacts make longer life
- Compatible with data bus protocols
- Sealed units are also available
- Flexible, color-coded, silver-plated, insulated lead wires
- Transfers analog and digital signals
- Also available with 5 and 10 amps power rings combined with 2 amps rings.
- Precision ball bearings meet or exceed life requirements for most commercial applications
- Increase the rate of power transmission.
- Minimise noise and interferences between the rings
- High data rate and frequency signal transmission.
- High-efficiency slip ring
- High-quality slip ring
- Long life slip ring
- Signal and power Can be combined in same slip ring
- CCTV pan / tilt camera mounts
- Rotary sensors, urgent illumination equipment
- Rotating Stages, revolving door
- Shadowless lamp, CT machine
- Cable Reel
- Analog Tester
- Laboratory equipment
- Shadowless lamp
- CT machine
- Steering wheel racing simulation
|Operating Speed||0-300 rpm|
|Number of Circuits||6|
|Current Rating||1 amps per circuit|
|Temperature Range||-20℃ to +60℃|
|Contact Material||Gold to Gold|
|Lead Size||30# silver plated copper|
|Lead Length||Standard 250 mm (9.843inch)|
|Dielectric Strength||≥500 VAC @50Hz, between each circuit|
|Insulation Resistance||1000 MΩ @ 500 VDC|
|Capsule Length =L|
|# of Circuits||L (mm)||Part No|
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
