1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm

  • 1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm
  • 1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm
  • 1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm
  • 1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPF0-1F
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces a week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Speed 0-240rpm Fiber Types SM/MM
Current Rating 1A/ Circuit Voltage 240 VAC/DC
Name Optical Rotary Joint Channel Number 1 Channel
Insertion Loss ＜3dB Insertion Loss Ripple ＜1dB
High Light

2000rpm fibre optic slip ring

,

optical rotary joint

,

IP54 Optical Rotary Joint
Product Description

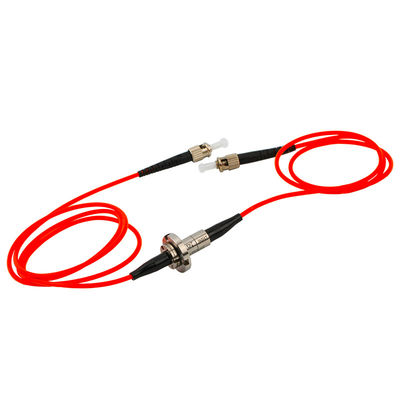

1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm



Description



LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.



slip ring outline drawing

LPFO-01F-fiber optic rotary joints.jpg



Slip Ring Parameter Table



Specifications
Fiber types SM or MM Connector types FC/SC/ST/LC(PC or APC)
Channel number 1 Estimated life cycle ＞200 million revolutions
Wavelength range

SM:1270-1650nm

MM:850-1300nm

 Vibration /
Insertion loss ＜3dB Mechanical shock /
Insertion loss ripple ＜1dB IP rating IP54
Weight, approx 20g Jacket types /
Return loss ≥40dB(SM)≥30dB(MM) Maximum speed 2000rpm
Max Optical power 23dBm Working temperature -45～+80℃
Package style / Storage temperature -55~+85℃

Features

  • Ruggedized for harsh environments
  • High return loss and low crosstalk
  • Compact size and package
  • High transmission rates and low resistance
  • Variety of configuration options
  • Custom designs available

Option

  • Exceed 100km fiber data connector
  • Integrated power channel and signal channel
  • Single channel design and Muti channel design
  • Single mode or Multimode & Single channel or Multichannel



Main Application

  • Security Systems
  • Material Handling Systems
  • Sensor Platforms
  • Remotely Operated Vehicles
  • Video Surveillance Systems
  • Fiber Optic Cable Reels

Application Picture

1 Channel Optical Rotary Joint Electrical Connector IP54 23dBm 2000rpm 1



Tags:

optical rotary joint

fibre optic slip ring

fiber optic slip ring
